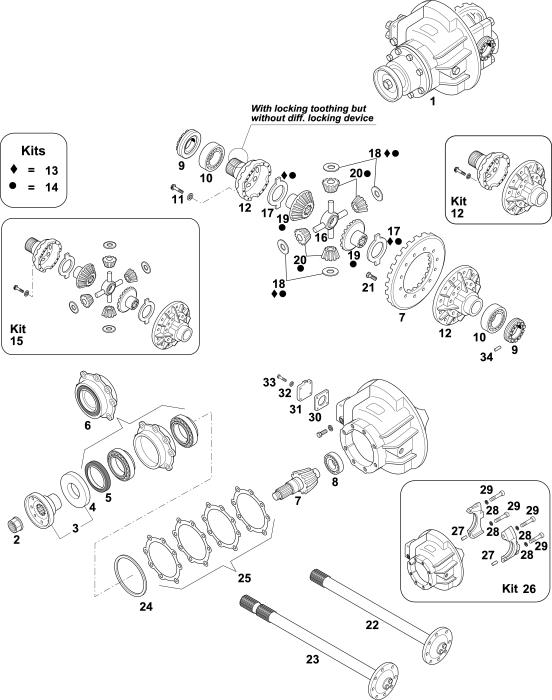

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1		42542756	GROUP DIFF.COMPLETE	(C)R.3,07	1
1		42543458	GROUP DIFF.COMPLETE	(C)R.3,21	1
1		42536362	GROUP DIFF.COMPLETE	(A)R.3,42	1
1		42536363	GROUP DIFF.COMPLETE	(A)R.3,73	1
1		42536354	GROUP DIFF.COMPLETE	(B)R.3,91	1
1		42536360	GROUP DIFF.COMPLETE	(A)R.4,10	1
1		42536832	GROUP DIFF.COMPLETE	(A)R.4,30	1
1		42536355	GROUP DIFF.COMPLETE	(B)R.4,56	1
1		42536583	GROUP DIFF.COMPLETE	(B)R.4,89	1
1		42536364	GROUP DIFF.COMPLETE	(B)R.5,12	1
1		42536356	GROUP DIFF.COMPLETE	(B)R.5,63	1
1		500021653	GROUP DIFF.COMPLETE	(B)R.6,14	1
1		500021122	GROUP DIFF.COMPLETE	(B)R.6,43	1
2	81171122	8121337	GROOVED NUT M45X1,5		1
3	81171544	42532870	COMPLETE FLANGE D.180		1
4	88171016	42532871	OIL DEFLECTOR		1	NSS
5	81171567	42534850	OIL SEAL 110,23X145X10/12		1
6	30170827	42540257	BEARING HOUSING	(8)	1
7	81171934	42537787	KIT CWP 43:14	(C)R.3,07(7)	1
7		42537789	KIT CWP 45:14	(C)R.3,21(7)	1
7		42536351	KIT CWP 41:12	(A)R.3,42(7)	1
7	81170673	42536352	KIT CWP 41:11	(A)R.3,73(7)	1
7		42536346	KIT CWP 43:11	(B)R.3,91(7)	1
7		42536347	KIT CWP 41:10	(A)R.4,10(7)	1
7		42536831	KIT CWP 43:10	(A)R.4,30(7)	1
7	81171936	42536348	KIT CWP 41:9	(B)R.4,56(7)	1
7	81171940	42536349	KIT CWP 44:9	(B)R.4,89(7)	1
7		42536353	KIT CWP 41:8	(B)R.5,12(7)	1
7		42536350	KIT CWP 45:8	(B)R.5,63(7)	1
7		42536975	KIT CWP 43:7	(B)R.6,14(7)	1
7		42538084	KIT CWP 45:7	(B)R.6,43(7)	1
8	98170107	1905316	BEARING 45X100X31 MM		1
9		8121386	GROOVED NUT M162X2,00		2
10	98170169	500054572	BEARING 105X160X35 MM		2

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
11	81171440	42532900	SCREW M16X1,5X85-12,9		12
12	81171452	42533228	DIFF. CASE EMPTY	(C)	1
12	81170674	42532872	DIFF. CASE EMPTY	(A)	1
12	81171810	42533253	DIFF. CASE EMPTY	(B)	1
13	81171097	8124396	WASHERS KIT		1
14	81170915	93161369	DIFF.REP.KIT W/OUT SPIDER		1
15	81171659	42534617	DIFF. CASE COMPLETE	(C)	1
15		42532873	DIFFERENTIAL CASE COMPL.	(A)	1
15		42533254	DIFFERENTIAL CASE COMPL.	(B)	1
16	81170152	42546538	DIFFERENTIAL SPIDER		1
17	81170190	8121396	THRUST WASHER		2
18	81170513	8121394	THRUST WASHER		4
19	81170188	*****	SIDE GEAR 14 T.-46 SPL.		2
20	81170189	7149272	DIFF. PINION 9 T.		4
21	81171196	42532899	SCREW M16X40 - CL.12.9		16
22		42536496	DRIVE SHAFT W/OUT D.LOCK	(1)(5)	1
22		42536510	DRIVE SHAFT W/OUT D.LOCK	(1)(6)	1
23		42536497	DRIVE SHAFT D.LOCK	(2)(5)	1
23		42536511	DRIVE SHAFT D.LOCK	(2)(6)	1
24	30170843	42537782	O-RING		1
25		93162062	WASHERS KIT		1
26		42537783	DIFFERENTIAL SUPPORT		1
27		8121390	PIN		4
28	81171512	8121388	WASHER D.36X24X3		4	NSS
29	81171510	503106181	SCREW M22X2,5X130-CL.10.9		4	NSS
30	88171022	42541822	GASKET		1
31		42543432	COVER		1
32	88170572	7984689	WASHER		4	NSS
33	88171018	7984688	SCREW		4
34		8121387	PIN		1

(ABC) RESPECT THE COUPLING AS THE ASSEMBLING WHEELBASE BETWEEN THE CWP AND THE DIFFERENTIAL HOUSING CHANGES.
(1) LEFT
(2) RIGHT
(5) ONLY FOR MODELS: 150E24/28 - 320E28T
(6) ONLY FOR MODELS: 180E21/24/28
(7) WE WILL SUPPLY ONLY THE CWP
(8) WITH OIL SEAL (FIG.5)
