(ABCDE) TO BE COUPLED TOGETHER
(1) CWP WITH DIFF. LOCK
(2) CWP WITHOUT DIFF. LOCK
(3) 81 35125 0046 (FIG.15) REPLACED BY 81 35125 6017 (NOT ILLUSTRATED)
(4) WITH GUARD
(6) FOR DIFF.LOCK REPLACED BY: 1 PC 60171464 - 81 35632 0001 (FIG.33) + 1 PC 60171512 - 81 35925 0018 (FIG.34); FOR WITHOUT DIFF.LOCK REPLACED BY: 1 PC 60171512 - 81 35925 0018 (FIG.34)
(7) MULTIPLE REPLACEMENT: 1 PC 60171589 - 81 35631 0018 (FIG.35) + 3 PCS 60171590 - 06 03223 0607 (FIG.36)
(8) AFTERMARKET VERSION
(9) PREMIUM BRAND

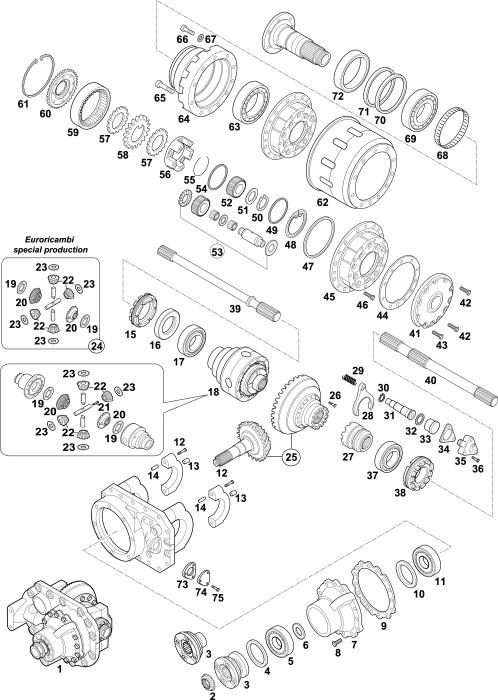

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1		81 35010 6210	DIFF.ASSY R.29:17	(A)R.1,70(1)	1
1		81 35010 6205	DIFF.ASSY R.29:17	(A)R.1,70(2)	1
1		81 35010 6209	DIFF.ASSY R.27:18	(B)R.1,50(1)	1
1		81 35010 6204	DIFF.ASSY R.27:18	(B)R.1,50(2)	1
1		81 35010 6208	DIFF.ASSY R.28:21	(C)R.1,33(1)	1
1		81 35010 6203	DIFF.ASSY R.28:21	(C)R.1,33(2)	1
1		81 35010 6207	DIFF.ASSY R.29:24	(D)R.1,20(1)	1
1		81 35010 6202	DIFF.ASSY R.29:24	(D)R.1,20(2)	1
1		81 35010 6206	DIFF.ASSY R.26:24	(E)R.1,08(1)	1
1		81 35010 6201	DIFF.ASSY R.26:24	(E)R.1,08(2)	1
2	60170101	81 90685 0311	NUT M45X1,5-SW55		1
3	60171377	81 39115 0482	OUTPUT FLANGE D.150	OLD(4)	1
3	60200091	81 39115 0207	OUTPUT FLANGE D.150 DIN9T	NEW	1
4	60171136	06 56279 0362	OIL SEAL 72X105X19 MM	OLD	1
4		06 56289 0399	OIL SEAL 72X105X19 MM	NEW	1
5	98170049	06 32499 0071	BEARING 54,5X104,77X36 MM		1
6		81 90711 0543	SPACER T.4,35 MM
6		81 90711 0616	SPACER T.4,65 MM
6	60171250	81 90711 0619	SPACER T.4,80 MM
6	60171251	81 90711 0981	SPACER T.5,10 MM			NSS
7	60200495	81 35601 0043	HOUSING	(ABCD)OLD	1	SOS
7	60171378	81 35601 0018	HOUSING	(ABCD)NEW	1
7		81 35601 0045	HOUSING	(E)	1
8		06 02859 0003	SCREW M14X1,5X40		12
9	60171202	81 90701 0717	SHIM 0,10 MM	(ABCD)
9		81 90702 0134	SHIM 0,10 MM	(E)
9	56170347	81 90701 0718	SHIM 0,15 MM	(ABCD)
9		81 90702 0135	SHIM 0,15 MM	(E)
9		81 90701 0719	SHIM 0,20 MM	(ABCD)
9		81 90702 0136	SHIM 0,20 MM	(E)
9		81 90701 0720	SHIM 0,35 MM	(ABCD)
9		81 90702 0137	SHIM 0,35 MM	(E)
9	60171216	81 90701 0731	SHIM 0,50 MM	(ABCD)
9		81 90702 0138	SHIM 0,50 MM	(E)

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
33	60171464	81 35632 0001	BUSH	BRONZE	1
34	60171512	81 35925 0018	GASKET		1
35		81 35631 0012	COVER	(7)	1
35	60171589	81 35631 0018	COVER		1
36		06 03223 0608	SCREW M8X35		3
36	60171590	06 03223 0607	SCREW TORX M8X30 CL.8.8		3	NSS
37	98170164	06 32489 0060	BEARING 85X130X29 MM		1
38	60171259	81 35125 0043	GROOVED NUT M132X1,5		1
39		81 35502 0162	DRIVE SHAFT W/OUT D.LOCK		1
40		81 35502 0163	DRIVE SHAFT D.LOCK		1
41	56170492	81 35114 0162	COVER		1
42	56170538	06 02839 0060	SCREW M14X1,5X20		2	NSS
43		06 02839 0006	SCREW M10X20		8
44	56170496	81 96601 0711	GASKET		1
45		81 35114 0153	HUB		1
46	60170791	81 90010 0067	SCREW M14X1,5X60-CL10.9		5
47		06 56341 3271	SEAL RING		1
48		06 29020 0209	LOCK RING 92X3		1
49		81 90702 0118	WASHER T.0,10 MM
49		81 90702 0119	WASHER T.0,20 MM
49		81 90702 0120	WASHER T.0,50 MM
49		81 90702 0121	WASHER T.1,00 MM
50		06 29200 0115	LOCK RING 40X1,75 MM		1
51		81 90714 0528	WASHER T.6,00 MM		1
52		81 35113 0065	SUN GEAR 20 T.		1
53		81 35112 6028	REPAIR KIT		1
54		81 90714 0494	WASHER T.4,00 MM		1
55	56170728	06 29160 0222	ELASTIC RING		1	NSS
56		81 35114 0155	SUPPORT		1
57	60171576	81 90620 0048	GROOVED NUT M88X1,5		2
58	60170748	81 90801 0224	RETAINER		1
59		81 35111 0033	RING GEAR		1
60		81 35114 0139	CARRIER HUB		1
61	56170529	81 90810 0074	LOCK RING		1
62		81 50110 0101	REAR BRAKE DRUM		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
63	98170034	06 32499 0154	BEARING 100X165X47 MM		1
64		81 35701 0177	HUB		1
64		81 35701 0178	HUB		1
65		81 45501 0142	SCREW M22X1,5X38X115		10
66		06 02191 2611	SCREW M12X1,5X35		3
66	56170604	06 02099 0499	SCREW M12X1,5X30		3	NSS
67		06 16160 4107	WASHER		3
68		81 52403 0025	PULSE WHEEL		1
69	98170061	06 32499 0155	BEARING 110X170X47 MM		1
70		06 56289 0365	SEAL RING 160X180X10 MM		1
71		06 56289 0366	SEAL RING 160X180X10 MM		1
72		81 35710 0100	PRESSURE RING		1
73	60171512	81 35925 0018	GASKET		1
74		81 98112 0151	COVER		1
75		06 01283 5113	SCREW M8X20		3
