SchemaEuroricambi

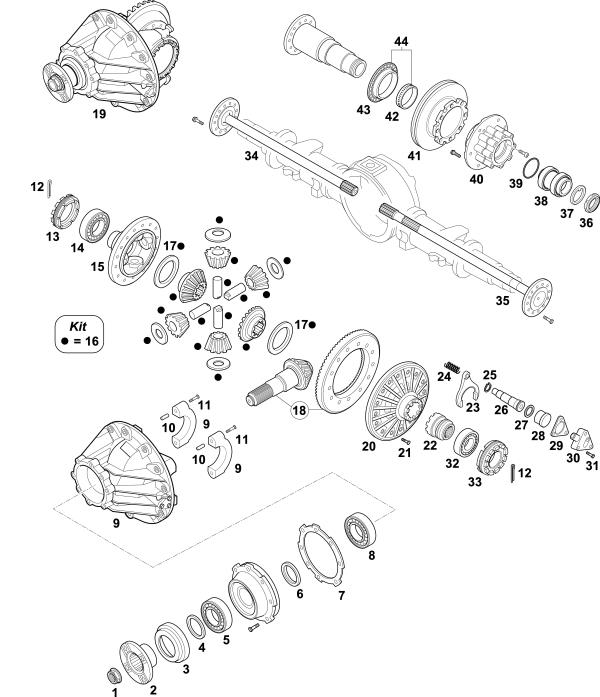

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1		81 90685 0442	NUT M40X1,5		1
2		81 39115 5110	OUTPUT FLANGE Ø 122 MM		1
2		81 39115 5111	OUTPUT FLANGE Ø 155 MM		1
3		81 39135 0019	DUST COVER		1
4	56170677	81 96503 0459	OIL SEAL 72X105X22,5		1
5		06 32489 0200	BEARING 50X105X32 MM		1
6		81 90714 0663	WASHER T.5,20 MM
7		81 90760 0313	WASHER T.1,10 MM
7		81 90760 0314	WASHER T.1,15 MM
7		81 90760 0315	WASHER T.1,20 MM
7		81 90760 0316	WASHER T.1,25 MM
7		81 90760 0317	WASHER T.1,30 MM
7		81 90760 0318	WASHER T.1,35 MM
7		81 90760 0319	WASHER T.1,40 MM
7		81 90760 0320	WASHER T.1,45 MM
7		81 90760 0321	WASHER T.1,50 MM
7		81 90760 0322	WASHER T.1,70 MM
8		06 32489 0120	BEARING 60X125X37 MM		1
9		81 35301 6122	HOUSING	(1)	1
10	60200465	06 22022 3010	PIN D.8X16		4	NSS
11		06 02191 2721	SCREW M14X1,5X90		4
12		06 16020 6914	PIN 6,3X32		2
13	60170915	81 35125 0006	GROOVED NUT RH		1
14		06 32489 0128	BEARING 70X110X25 MM		1
15		81 35105 0195	DIFFERENTIAL HALF HOUSING		1
16	56170696	81 35107 6041	DIFFERENTIAL GEAR KIT		1
17	60170091	81 35613 0043	THRUST WASHER		2
18		81 35199 6665	CROWN WHEEL/PINION 37:7	R.5,285	1
18		81 35199 6666	CROWN WHEEL/PINION 37:8	R.4.625	1
18		81 35199 6667	CROWN WHEEL/PINION 37:9	R.4,111	1
18	56170687	81 35199 6668	CROWN WHEEL/PINION 37:10	R.3,700	1
18		81 35199 6669	CROWN WHEEL/PINION 37:11	R.3.363	1
18		81 35199 6670	CROWN WHEEL/PINION 37:12	R.3,083	1
19		81 35010 6232	DIFF.ASSY R.37:7	R.5,285(2)(4)	1

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
19		81 35010 6238	DIFF.ASSY R.37:7	R.5,285(3)(4)	1
19		81 35010 6264	DIFF.ASSY R.37:7	R.5,285(2)(5)	1
19		81 35010 6270	DIFF.ASSY R.37:7	R.5,285(3)(5)	1
19		81 35010 6233	DIFF.ASSY R.37:8	R.4,625(2)(4)	1
19		81 35010 6239	DIFF.ASSY R.37:8	R.4,625(3)(4)	1
19		81 35010 6265	DIFF.ASSY R.37:8	R.4,625(2)(5)	1
19		81 35010 6271	DIFF.ASSY R.37:8	R.4,625(3)(5)	1
19		81 35010 6234	DIFF.ASSY R.37:9	R.4,111(2)(4)	1
19		81 35010 6240	DIFF.ASSY R.37:9	R.4,111(3)(4)	1
19		81 35010 6266	DIFF.ASSY R.37:9	R.4,111(2)(5)	1
19		81 35010 6272	DIFF.ASSY R.37:9	R.4,111(3)(5)	1
19		81 35010 6235	DIFF.ASSY R.37:10	R.3,700(2)(4)	1
19		81 35010 6241	DIFF.ASSY R.37:10	R.3,700(3)(4)	1
19		81 35010 6267	DIFF.ASSY R.37:10	R.3,700(2)(5)	1
19		81 35010 6273	DIFF.ASSY R.37:10	R.3,700(3)(5)	1
19		81 35010 6236	DIFF.ASSY R.37:11	R.3,363(2)(4)	1
19		81 35010 6242	DIFF.ASSY R.37:11	R.3,363(3)(4)	1
19		81 35010 6268	DIFF.ASSY R.37:11	R.3,363(2)(5)	1
19		81 35010 6274	DIFF.ASSY R.37:11	R.3,363(3)(5)	1
19		81 35010 6237	DIFF.ASSY R.37:12	R.3,083(2)(4)	1
19		81 35010 6243	DIFF.ASSY R.37:12	R.3,083(3)(4)	1
19		81 35010 6269	DIFF.ASSY R.37:12	R.3,083(2)(5)	1
19		81 35010 6275	DIFF.ASSY R.37:12	R.3,083(3)(5)	1
20		81 35105 0197	DIFFERENTIAL HALF HOUSING	(2)	1
20		81 35105 0198	DIFFERENTIAL HALF HOUSING	(3)	1
21		06 02813 4913	SCREW M14X1,5X40-10,9		12
22		81 35202 0049	DIFF.LOCK SLEEVE		1
23		81 35614 0020	FORK		1
24	56170442	81 97602 0893	SPRING		1	NSS
25	56170443	06 15114 0419	WASHER 22X30X0,50 MM			NSS
25	60171508	06 15114 2119	WASHER 22X30X1,00 MM			NSS
26		81 35619 0010	PIN		1
27	60171511	06 56938 1683	O-RING 34X3		1
28	60171464	81 35632 0001	BUSH		1
29	60171512	81 35925 0018	GASKET		1

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
30	60171589	81 35631 0018	COVER		1
31	60171590	06 03223 0607	SCREW TORX M8X30 CL.8.8		3	NSS
32	98170164	06 32489 0060	BEARING 85X130X29 MM		1
33	60171259	81 35125 0043	GROOVED NUT M132X1,5		1
34		81 35502 0178	DRIVE SHAFT W/OUT D.LOCK	L=908 MM	1
35		81 35502 0179	DRIVE SHAFT WITH D.LOCK	L=908 MM	1
36		81 90620 0116	NUT		1
37		81 90714 0530	WASHER		1
38		81 93420 6102	BEARING 78X130X90 MM		1
39		06 56936 2947	SEAL RING		1
40		81 35701 0173	WHEEL HUB		1
41		81 50803 0062	DISC BRAKE		1
42		81 93021 0397	BUSH		1
43		81 52403 0029	PULSE DISK		1
44		81 52400 6005	REPAIR KIT		1

(1) EXCLUDED DIFF.ASSY WITHOUT DIFF.LOCK, WITH FLANGE Ø 122 MM
(2) WITHOUT DIFF. LOCK
(3) WITH DIFF. LOCK
(4) WITH FLANGE Ø 122 MM
(5) WITH FLANGE Ø 155 MM
