(#) FOR DIFF.ASSY: 81 35600 6560 - 81 35600 6561 - 81 35600 6562 (FIG.73)
(&) FOR DIFF.ASSY: 81 35600 6410 - 81 35600 6409 - 81 35600 6408 - 81 35600 6407 - 81 35600 6406 - 81 35600 6405 (FIG.73)
(@) FOR DIFF.ASSY: 81 35600 6300 - 81 35600 6303 - 81 35600 6306 - 81 35600 6309 - 81 35600 6312 - 81 35600 6315 (FIG.73)
(ABCDEF) TO BE COUPLED TOGETHER
(GHL) T BE COUPLED TOGETHER
(1) REPLACED BY 1 PC 81 35612 0019 (FIG.14) + 1 PC 81 35610 0049 (FIG.16)
(2) REPLACED BY 1 PC 81 35610 0049 (FIG.16) + 1 PC 81 35612 0019 (FIG.14)
(3) COMPONENT OF 56170116 - ****** (FIG.29)
(4) NOT SUPPLIED SEPARATELY, WE SUPPLY THE DIFFERENTIAL SHAFT KIT COMPLETE : 56170116 - ***** (FIG.29)
(5) COMPONENT OF 56170126 - 81 35107 6023 (FIG.30)
(6) COMPONENT OF 56170209 - 81 35107 6025 (FIG.31)
(7) MULTIPLE REPLACEMENT: 1 PC 56170397 - 81 35610 0049 (FIG.111) + 1 PC 56170396 - 81 35612 0019 (FIG.109)
(8) NOT SUPPLIED SEPARATELY, WE SUPPLY: 56170209 - 81 35107 6025 (FIG.31)
(9) WE SUPPLY THE ALTERNATIVE VERSION: 56170209 - 81 35107 6025 PERFECTLY INTERCHANGEABLE
(10) WE SUPPLY THE ALTERNATIVE VERSION: 98531229 - ***** (FIG. 10)
(11) MULTIPLE REPLACEMENT: 1 PC. 56170396 - 81 35612 0019 (FIG.14) + 1 PC. 56170397 - 81 35610 0049 (FIG.16)

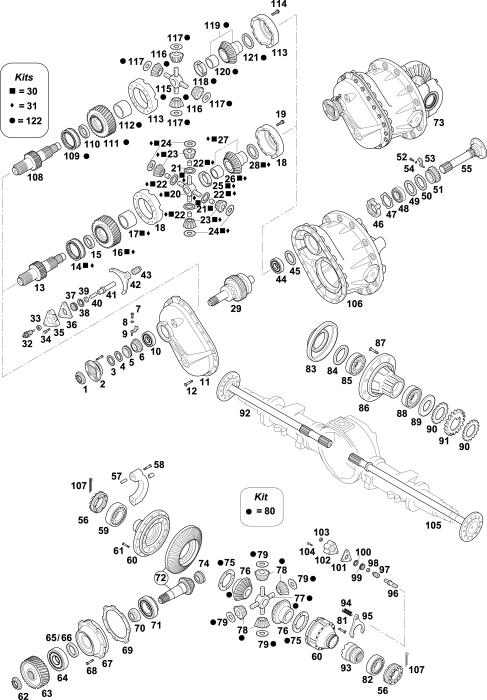

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
22	60200247	81 93021 0218	BUSH 27X31X24 MM	(3)(5)(6)	4
23	60200242	81 35609 0008	DIFF. PINION 10 T.	(3)(5)(6)	4
24	60170577	81 90701 0722	THRUST WASHER	(3)(5)(6)	4
25	60200241	81 90620 0088	GROOVED NUT M48X1,5	(@)(3)(5)	1
25	56170157	81 93021 0399	SPACER 58X48,1X18,1	(&)(6)	1
26	60170579	81 93020 0679	BUSH 49X44X35 MM	(@)(&)(3)(5)(6)	1
27	60170580	81 35618 0003	SIDE GEAR 16 T.-22 SPL.	(@)(3)(5)	1
27	56170155	81 35618 6002	SIDE GEAR 16 T.-22 SPL.	(&)(6)	1
28	60200179	81 35204 0034	THRUST WASHER T.2,35 MM	(@)(5)
28	60200177	81 35204 0036	THRUST WASHER T.2,60 MM	(@)(3)(5)
28	56170398	81 93021 0340	THRUST WASHER 90X75X8,25	(&)(6)	1
29	56170116	*****	DIFFERENTIAL SHAFT KIT	(@)	1
30	56170126	81 35107 6023	REPAIR KIT	(@)(4)	1	SOS
31	56170209	81 35107 6025	DIFFERENTIAL GEAR KIT	(&)	1
32		81 25505 0636	SPEEDOMETER GEAR	(@)(&)	1
33		06 56190 0812	SEAL RING A18X22-AL		1
34		06 01013 7119	SCREW M8X70		3
35	60170425	81 35631 0006	CYLINDER		1
36		81 96601 0627	GASKET 48X0,5-3X9		1
37	56170224	81 35634 0011	PISTON		1
38	56170348	06 56331 3274	SEAL RING 36X5		1
39		06 11271 6211	NUT		1
40		06 06073 1414	LOCK PIN M10X25		1
41	60200425	81 35619 0003	PIN		1
42	60170740	81 35614 0001	DIFFERENTIAL FORK		1
43		81 97601 0689	SPRING 3,6X27X58		1
44	98170192	06 31420 0602	BEARING 70X125X24 MM	(@)	1
44	98170242	06 32489 0018	BEARING 70X125X26,25 MM	(&)(#)	1
45		81 90770 0253	THRUST WASHER	(&)(#)	1
46	60200103	06 12114 0121	GROOVED NUT		1
47	60200340	06 16130 0121	LOCK RING		1
48	98170193	06 31420 0302	BEARING 55X100X21 MM		1
49	60171089	06 56279 0323	OIL SEAL 68X90X10/9,5 MM		1
50	60171090	06 56279 0327	OIL SEAL 68X90X10 MM		1
51		81 35125 0028	GROOVED NUT		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
52		06 01303 3111	SCREW M8X16	(@)	1
52		06 01283 5111	SCREW M8X16	(&)	1
52	56170446	06 02813 4306	SCREW M8X1,25X16 CL.10.9	(#)	1	NSS
53		06 16160 0205	WASHER	(@)(&)	1
53	60171918	81 90801 0221	RETAINER	(#)	1
54	60171918	81 90801 0221	RETAINER	(@)(&)	1
55	56170151	81 35604 0020	DRIVE SHAFT W/FLAN. D.155		1
56	56170210	81 35125 0023	GROOVED NUT		2
57	60200465	06 22022 3010	PIN D.8X16		4	NSS
58		06 01494 4720	SCREW M18X2X110		4
59	98170169	06 32489 0070	BEARING 105X160X35 MM		1
60		81 35100 6487	DIFF. CASE EMPTY	(ABC)	1
60	56170205	81 35100 6486	DIFF. CASE EMPTY	(DEF)	1
61		06 02813 5012	SCREW M16X1,5X35-10,9		16
62	60170101	81 90685 0311	NUT M45X1,5-SW55		1
63	56170098	81 35610 0025	GEAR 30 T.		1
64	98170004	06 32499 0087	BEARING 60X130X33,5 MM		1
65		81 90770 0120	WASHER T.3,70 MM
65		81 90770 0121	WASHER T.3,80 MM
65		81 90770 0122	WASHER T.3,90 MM
65		81 90770 0123	WASHER T.4,00 MM
65		81 90770 0124	WASHER T.4,10 MM
65		81 90770 0125	WASHER T.4,20 MM
65		81 90770 0126	WASHER T.4,30 MM
65		81 90770 0127	WASHER T.4,35 MM
65		81 90770 0128	WASHER T.4,40 MM
65		81 90770 0129	WASHER T.4,425 MM
65		81 90770 0130	WASHER T.4,45 MM
65		81 90770 0131	WASHER T.4,475 MM
65		81 90770 0132	WASHER T.4,50 MM
65		81 90770 0133	WASHER T.4,525 MM
65		81 90770 0134	WASHER T.4,55 MM
65		81 90770 0135	WASHER T.4,575 MM
65		81 90770 0136	WASHER T.4,60 MM
66		81 90770 0137	WASHER T.4,625 MM

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
66		81 90770 0138	WASHER T.4,65 MM
66		81 90770 0139	WASHER T.4,675 MM
66		81 90770 0140	WASHER T.4,70 MM
66		81 90770 0141	WASHER T.4,725 MM
66		81 90770 0142	WASHER T.4,75 MM
66		81 90770 0143	WASHER T.4,775 MM
66		81 90770 0144	WASHER T.4,80 MM
66		81 90770 0145	WASHER T.4,85 MM
66		81 90770 0146	WASHER T.4,90 MM
66		81 90770 0147	WASHER T.4,95 MM
66		81 90770 0148	WASHER T.5,00 MM
66		81 90770 0149	WASHER T.5,05 MM
66		81 90770 0150	WASHER T.5,10 MM
66		81 90770 0151	WASHER T.5,20 MM
66		81 90770 0152	WASHER T.5,30 MM
67		81 35601 0032	BEARING CASE		1
68		06 02813 4913	SCREW M14X1,5X40-10,9		8
69		81 90701 0953	WASHER T.0,10 MM
69		81 90701 0954	WASHER T.0,15 MM
69		81 90701 0955	WASHER T.0,20 MM
69		81 90701 0956	WASHER T.0,35 MM
69		81 90701 0957	WASHER T.0,50 MM
69		81 90701 0958	WASHER T.1,00 MM
69		81 90701 0959	WASHER T.1,50 MM
70		81 91701 0409	BUSH		1
71	98170072	06 32489 0069	BEARING 70X165X57 MM		1
72		81 35199 6495	CROWN WHEEL/PINION 41:7	A@&-R.5,85	1
72		81 35199 6496	CROWN WHEEL/PINION 39:7	B@&-R.5,57	1
72		81 35199 6497	CROWN WHEEL/PINION 37:7	CG-R.5,286	1
72	56170136	81 35199 6498	CROWN WHEEL/PINION 37:8	DH-R.4,625	1
72	56170133	81 35199 6499	CROWN WHEEL/PINION 37:9	EL-R.4,111	1
72	56170130	81 35199 6500	CROWN WHEEL/PINION 37:10	F@&-R.3,70	1
73		81 35600 6300	DIFF.ASSY R.41:7	A@-R.5,85	1
73		81 35600 6410	DIFF.ASSY R.41:7	A&-R.5,85	1
73		81 35600 6303	DIFF.ASSY R.39:7	B@-R.5,57	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
73		81 35600 6409	DIFF.ASSY R.39:7	B&-R.5,57	1
73		81 35600 6306	DIFF.ASSY R.37:7	C@-R.5,28	1
73		81 35600 6408	DIFF.ASSY R.37:7	C&-R.5,28	1
73		81 35600 6309	DIFF.ASSY R.37:8	D@-R.4,62	1
73		81 35600 6407	DIFF.ASSY R.37:8	D&-R.4,62	1
73		81 35600 6312	DIFF.ASSY R.37:9	E@-R.4,11	1
73		81 35600 6406	DIFF.ASSY R.37:9	E&-R.4,11	1
73		81 35600 6315	DIFF.ASSY R.37:10	F@-R.3,70	1
73		81 35600 6405	DIFF.ASSY R.37:10	F&-R.3,70	1
73		81 35600 6560	DIFF.ASSY R.37:7	G#-R.5,28	1
73		81 35600 6561	DIFF.ASSY R.37:8	H#-R.4,625	1
73		81 35600 6562	DIFF.ASSY R.37:9	L#-R.4,111	1
74	98170074	06 32609 0065	BEARING 40X94X30 MM		1
75	56170107	81 35613 0041	THRUST WASHER		2
76	56170104	81 35106 0040	SIDE GEAR 18 T-28 SPLINE		2	NSS
77	56170106	81 35608 0020	SPIDER		1	NSS
78	56170105	81 35108 0067	DIFF. PINION 10 T.		4	NSS
79	56170108	81 90701 0960	THRUST WASHER		4
80	56170092	81 35107 6019	DIFFERENTIAL GEAR KIT		1
81		06 01494 6419	SCREW M14X1,5X100		12
82	98170113	06 32499 0188	BEARING 105X160X43 MM		1
83		81 35730 0032	SEAL BAFFLE		1
84		81 96503 0398	SEAL RING 135X175X18 MM		1
85	98170113	06 32499 0188	BEARING 105X160X43 MM		1
86		81 35701 0159	HUB WHEEL		1
87		81 45501 0139	LOCK PIN M22X1,5X38X98		10
88	98170052	06 32499 0123	BEARING 95X145X39 MM		1
89		81 90712 0819	WASHER		1
90	60171576	81 90620 0048	GROOVED NUT M88X1,5		2
91	60170748	81 90801 0224	RETAINER		1
92		81 35502 0137	DRIVE SHAFT D.LOCK		1
93	56170214	81 35202 0028	DIFF.LOCK SLEEVE		1
94		81 97601 0689	SPRING 3,6X27X58		1
95	56170628	81 35614 0016	FORK		1
96	60200425	81 35619 0003	PIN		1
