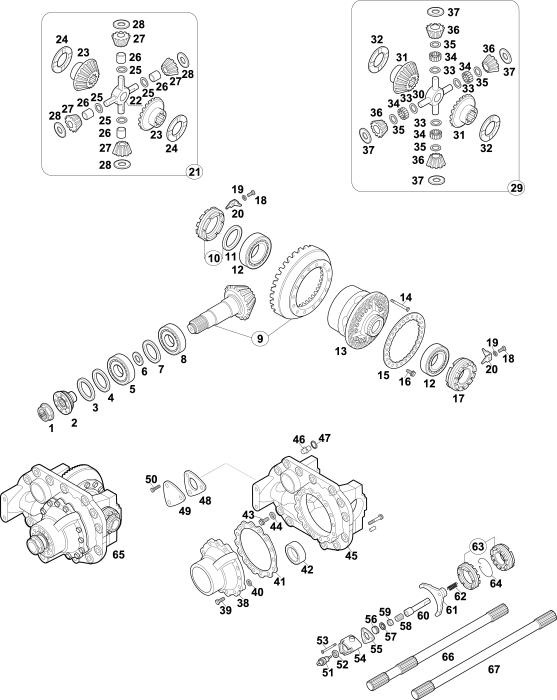

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	60170101	385 351 0672	NUT M45X1,5-SW55		1
2	60170931	305 353 0345	OUTPUT FLANGE D.150	8 HOLES	1
2	60170934	355 353 1445	OUTPUT FLANGE D.165	8 HOLES	1
2	60170933	355 353 1245	OUTPUT FLANGE D.180	10 HOLES	1
3		009 997 9146	OIL SEAL 72X105X13 MM	(1)	1
3	60171136	020 997 0647	OIL SEAL 72X105X19 MM		1
4		013 997 4947	OIL SEAL 72X105X13 MM		1
5	98170049	005 981 4605	BEARING 54,5X104,77X36 MM		1
6		355 353 6751	SPACER T.4,21 MM		1
6		355 353 5751	SPACER T.4,25 MM		1
6		355 353 2151	SPACER T.4,30 MM		1
6	56170454	355 353 2351	SPACER T.4,40 MM		1	NSS
6	60171910	355 353 2551	SPACER T.4,50 MM		1
6		355 353 2751	SPACER T.4,60 MM		1
6		355 353 2951	SPACER T.4,70 MM		1
6		355 353 7252	SPACER T.5,20 MM		1
7	60171252	355 353 0129	OIL FLAP		1	NSS
8	98170059	005 981 0505	BEARING 65X140X51 MM	(15)	1
8	98170319	. 005 981 0505	BEARING 65X140X51 MM	(16)	1
9	60170564	355 350 4739	CROWN WHEEL/PINION 27:18	(AE)	1
9	60170563	355 350 4639	CROWN WHEEL/PINION 29:17	(AF)	1
9	60170427	355 350 2939	CROWN WHEEL/PINION 29:24	(AG)	1
9	60171051	357 350 0639	CROWN WHEEL/PINION 29:24	(AG)OLD	1
9		944 350 0439	CROWN WHEEL/PINION 29:24	(AG)NEW	1
10	60170880	355 350 0343	GROOVED NUT LH	OLD(14)	1
10	60171483	944 350 0243	GROOVED NUT	NEW(13)	1	ALT
11	60200160	355 353 0160	RING 47,5X57,5X7		1	NSS
12	98170048	003 981 4105	BEARING 65X110X34,10 MM		2
13	60170602	355 350 0227	DIFF. CASE EMPTY	(AB)OLD	1
13	60170566	387 350 1323	DIFF. CASE COMPLETE	(AB)OLD	1
13	60170770	*****	DIFF. CASE EMPTY	(AD)NEW	1
13	60170744	387 350 5923	DIFF. CASE COMPLETE	(AD)NEW	1
14	60170601	900170 012036	SCREW M12X1,5X70	(2)	12	NSS
14		914112 012303	SCREW	(3)	12

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
15		355 353 0173	RETAINER RING	(5)	1
16	60171916	383 990 0701	SCREW M12X1X26	(6)	16
17	60170915	371 353 0025	GROOVED NUT RH		1
18	60171521	304017 008039	SCREW M8X1,25X12		2	NSS
19		006797 008120	WASHER		2
20	60171145	346 333 0073	RETAINER		2
21	60170472	393 586 0035	DIFFERENTIAL REPAIR KIT	(B)	1
21	60170843	393 350 0040	DIFFERENTIAL REPAIR KIT	(C)	1
22	60170473	355 353 0620	DIFFERENTIAL SPIDER		1
23	60170474	355 353 0315	SIDE GEAR 16 T.-34 SPL.	(B)	2
23	60170742	355 353 0815	SIDE GEAR 16 T.-34 SPL.	(C)	2
24	60200092	308 353 0062	THRUST WASHER T.4,50 MM	STEEL	2
25	60170479	355 353 6051	SPACER 31X22,5X1,5 MM		4
26	60170478	355 353 0750	BUSH 22,1X26X24,5 MM		4
27	60170476	494 335 0214	DIFF. PINION 10 T.	(B)	4
27	60170904	355 353 0614	DIFF. PINION 10 T.	(C)	4
28	60170477	494 335 0075	THRUST WASHER		4
29	60170781	395 350 0040	DIFFERENTIAL REPAIR KIT	(D)	1
30	60170773	395 353 0320	DIFFERENTIAL SPIDER		1
31	60170772	355 353 0615	SIDE GEAR 14 T.-34 SPL.		2
32	60200092	308 353 0062	THRUST WASHER T.4,50 MM	STEEL	2
33	60170777	395 353 0551	SPACER 36,2X25,5X4 MM		4
34	60170779	395 981 0287	NEEDLE KIT (156 PCS)
35	60170778	395 353 0351	SHIM 2,80 MM		4
36	60170743	395 353 0114	DIFF. PINION 10 T.		4
37	60170776	395 353 0277	THRUST WASHER		4
38	60200495	355 353 0807	HOUSING		1	SOS
39		942 990 1304	SCREW M14X40		12
40		002 997 6140	SEAL RING		3
41	60171202	355 353 0152	SHIM 0,10 MM		1
41	56170347	355 353 0252	SHIM 0,15 MM		1
41	60171216	355 353 0552	SHIM 0,50 MM		1
42	60200467	355 997 0120	PLUG	(4)	1	NSS
43	60171913	355 990 0604	SCREW M12X40		14
43		355 990 1204	SCREW M12X40		2

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
44		346 334 0059	SEAL RING		20
45	60200422	387 350 0020	DIFF.CASE FOR CWP W/PLUG		1
46		355 350 0055	PIN		2
47		912009 025100	RING 25X1,2 MM		2
48	60171919	355 353 0380	GASKET		1
49		355 353 1545	COVER		1
50	60531470	304017 008021	SCREW TE M8X20		3	NSS
51	60171144	001 545 5709	SWITCH		1
52		007603 018100	SEAL RING 18X22 MM		1
52	95531568	007603 018103	SEAL RING18X24X1,4DIN7603		1
53		304014 008001	SCREW M8X70		1
54	60170425	346 353 0655	CYLINDER		1
55	60171920	355 353 0280	GASKET		1
56	56170224	346 353 0357	PISTON		1
57	56170348	001 997 2245	SEAL RING 36X5		1
58		000551 010010	STUD BOLT M10X20	(7)	1
58		000551 010006	STUD BOLT M10X25	(8)	1
59		000936 010008	NUT		1
60		346 353 0235	PIN	(7)	1
60	60200425	346 353 0535	PIN	(8)	1
61		355 353 1334	DIFFERENTIAL FORK		1
62		346 993 0901	SPRING		1
63		355 350 0011	COUPLING SLEEVE		1
64		346 335 0073	RETAINER		1
65		387 350 2620	DIFF.ASSY R.27:18	(E)	1
65		387 350 3020	DIFF.ASSY R.29:17	(F)	1
65		387 350 3120	DIFF.ASSY R.29:24	(G)	1
66	60170965	355 357 0801	DRIVE SHAFT L=1090 MM	(9)	1
66	60200430	307 357 0101	DRIVE SHAFT D.LOCK L=1100	OLD(11)	1
66	60171151	659 357 1101	DRIVE SHAFT D.LOCK L=1103	NEW(10)	1
67	60170964	355 357 0701	DRIVE SHAFT L=1090 MM	(9)	1
67	60171153	659 357 1001	DRIVE SHAFT L=1103 MM	(10)	1
67	60200429	307 357 0001	DRIVE SHAFT L=1100 MM	(12)	1

(ABCDEFG) TO BE COUPLED TOGETHER
(1) USE THE OLD NUMBER UP TO AXLE 451807
(2) UP TO AXLE 687979
(3) FROM AXLE 687980
(4) UP TO AXLE 266346
(5) UP TO AXLE 204493
(6) FROM AXLE 204494
(7) UP TO AXLE 232174
(8) FROM AXLE 232175
(9) UP TO AXLE 972499
(10) FROM AXLE 972500
(11) REPLACED BY 1 PC 659 357 1101 (FIG.66) + 1 PC 009045 042001 (NOT ILLUSTRATED)
(12) REPLACED BY 1 PC 659 357 1001 (FIG.67) + 1 PC 009045 042001 (NOT ILLUSTRATED)
(13) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE: 60170880 - 355 350 0343 (FIG.10)
(14) 60170880 - 355 350 0343 (FIG.10) COMPOSED BY 1 PC 60200159 - 944 353 0228 GUARD (NOT ILLUSTRATED) + 1 PC 60200160 - 355 353 0160 (FIG.11) + 1 PC 60200161 - 355 353 0425 (NOT ILLUSTRATED)
(15) AFTERMARKET VERSION
(16) PREMIUM BRAND
