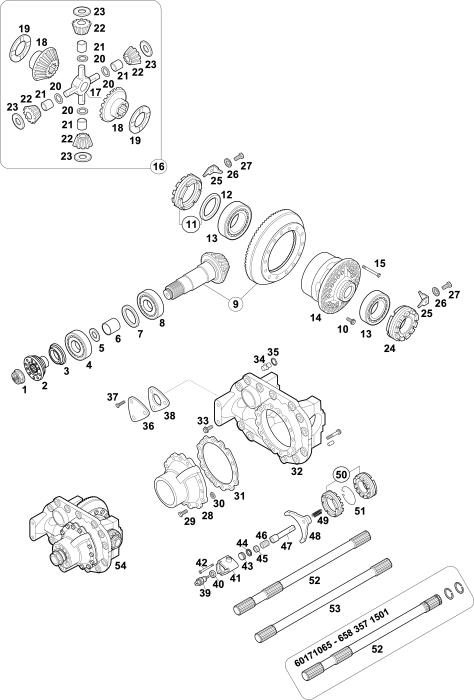

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	60170893	385 351 0572	NUT M55X1,5-SW65		1
2	60170208	346 350 0545	OUTPUT FLANGE D.180	10 HOLES	1
2		346 350 1245	OUTPUT FLANGE D.180		1
3	60170258	346 353 0090	GUARD		1	NSS
4	98170154	003 981 0605	BEARING 65X140X36 MM		1
5		942 353 0177	SHIM 1,60 MM		1
5		346 353 1051	SHIM 4,40 MM		1
5		346 353 1251	SHIM 4,50 MM		1
6		346 353 0453	BUSH T.72,00 MM		1
6	60171575	942 353 0042	BUSH T.74,30 MM		1
7	60171699	346 353 1429	OIL COLLECTOR		1	NSS
8	98170054	003 981 2905	BEARING 70X150X54 MM		1
9	60170247	346 350 1939	CROWN WHEEL/PINION 28:21		1
9	60170002	346 350 1739	CROWN WHEEL/PINION 27:18		1
9	60170423	346 350 3539	CROWN WHEEL/PINION 29:24	OLD	1
9		346 350 8039	CROWN WHEEL/PINION 29:24	NEW	1
9	60170841	346 350 4439	CROWN WHEEL/PINION 26:24		1
10	60171915	346 990 3101	SCREW M14X1-4		16
11	60170501	346 350 0443	GROOVED NUT	(3)	1
12	60170511	942 353 0080	RING		1	NSS
13	98170042	003 981 3205	BEARING 75X125X37 MM		2
14	60170184	346 350 0427	DIFF. CASE EMPTY	(A)	1
14	60170171	346 350 8123	DIFF. CASE COMPLETE	(A)	1
14	60170813	346 350 8223	DIFF. CASE COMPLETE	(B)	1
14	60170821	393 350 2623	DIFF. CASE COMPLETE	(B)	1
15	60170437	914112 014312	SCREW T.E. M14X1,5X95	OLD	12	NSS
15		000 997 6704	SCREW	NEW	12
15		914112 014313	SCREW		12
15		005 990 5304	SCREW M14X110		12
15	60170490	000 990 9004	SCREW 14X120		12
16	60170151	387 586 0035	DIFFERENTIAL REPAIR KIT	(A)	1
16	60170737	387 350 0040	DIFFERENTIAL REPAIR KIT	(B)	1
17	60170177	346 353 0420	DIFFERENTIAL SPIDER		1
18	60170090	346 353 0315	SIDE GEAR 16 T.-40 SPL.	(A)	2

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
18	60170765	346 353 0815	SIDE GEAR 16 T.-40 SPL.	(B)	2
19	60170091	346 353 2262	THRUST WASHER	STEEL	2
20	60170147	346 353 3251	LOCK RING		4
21	60170146	346 353 0950	BUSH		4
22	60170145	346 353 0614	DIFF. PINION 11 T.	(A)	4
22	60170764	346 353 1014	DIFF. PINION 11 T.	(B)	4
23	60170089	346 353 0124	THRUST WASHER		4
24	60170226	652 353 0025	GROOVED NUT		1
25	60171145	346 333 0073	RETAINER		2
26		006797 008120	WASHER		2
27		304017 008016	SCREW M8X16		2
28	60171543	346 353 0807	HOUSING		1
29		942 990 1304	SCREW M14X40		12
29		006 990 8601	SCREW M12X38	OLD	12
29		021 990 0201	SCREW M12X38	NEW	12
30		002 997 6140	SEAL RING		2
31		346 353 0952	SHIM 0,10 MM		1
31		346 353 1852	SPACER T.0,10 MM		1
31		346 353 1052	SHIM 0,15 MM		1
31		346 353 1152	SPACER T.0,20 MM		1
31		346 353 1252	SHIM 0,35 MM		1
31		346 353 1352	SHIM 0,50 MM		1
31		346 353 2252	SPACER T.0,50 MM		1
31		346 353 1452	SHIM 1,00 MM		1
31		346 353 1652	SHIM 1,50 MM		1
32	60200319	942 350 0603	AXLE HOUSING		1
32	60200318	942 350 0703	AXLE HOUSING		1
33	60171913	355 990 0604	SCREW M12X40		18
33		355 990 0704	SCREW M12X85		2
34		355 350 0055	PIN		2
35		912009 025100	RING 25X1,2 MM		2
36		355 353 1545	COVER		1
37	60531470	304017 008021	SCREW TE M8X20		3	NSS
38	60171919	355 353 0380	GASKET		1
39	60171144	001 545 5709	SWITCH		1

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
40	95532557	007603 018101	WASHER 18X24 MM		1	NSS
41	60170425	346 353 0655	CYLINDER		1
42		000931 008278	SCREW		3
43	56170224	346 353 0357	PISTON		1
44	56170348	001 997 2245	SEAL RING 36X5		1
45		000936 010008	NUT		1
46		000551 010020	STUD BOLT M10X25		1
47	60200425	346 353 0535	PIN		1
48	60170741	346 353 0234	DIFFERENTIAL FORK		1
49		346 993 0901	SPRING		1
50	60200113	346 350 0111	DIFF.LOCK KIT		1
51		352 994 0039	ELASTIC RING		1
52	60200164	346 357 2901	DRIVE SHAFT D.LOCK L=1104	(5)(6)	1	ALT
52	60171065	658 357 1501	DRIVE SHAFT D.LOCK L=1108		1
52	60171197	658 357 0701	DRIVE SHAFT D.LOCK L=1098		1
52	60171198	658 357 0901	DRIVE SHAFT D.LOCK L=1108		1
53	60170963	346 357 0701	DRIVE SHAFT L=1092 MM	(7)	1
53	60171609	658 357 0601	DRIVE SHAFT W/OUT D.LOCK		1
53	60200165	346 357 2801	DRIVE SHAFT L=1104 MM	(5)(8)	1	ALT
53	60171154	658 357 0801	DRIVE SHAFT L=1108 MM		1
54		346 350 7020	DIFF.ASSY R.28:21		1
54		346 350 9903	DIFF.ASSY R.27:18		1
54		397 350 0120	DIFF.ASSY R.29:24		1
54		655 350 7820	DIFF.ASSY R.26:24		1

(AB) TO BE COUPLED TOGETHER
(3) 60170501 - 346 350 0443 (FIG.11) INCLUDES 1 PC 60170511 - 942 353 0080 (FIG.12)
(5) WE ONLY SUPPLY THE REINFORCED VERSION WITH LOCKING AND STOP RINGS: 658 357 1501 (FIG.52) + 2 PCS 009045 050001 (NOT ILLUSTRATED)
(6) 346 357 2901 (FIG.52) REPLACED BY 658 357 0901 (FIG.52) + 009045 050001 (NOT ILLUSTRATED)
(7) 346 357 1701 (FIG.53) REPLACED BY 658 357 0601 (FIG.53) + 009045 050001 (NOT ILLUSTRATED)
(8) 346 357 2801 (FIG.53) REPLACED BY 658 357 0801 (FIG.53) + 009045 050001 (NOT ILLUSTRATED)
