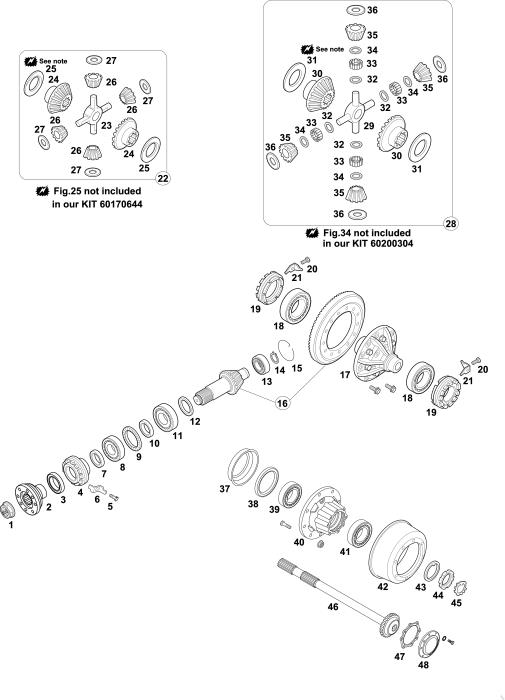

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	60170081	385 351 0172	NUT M40X1,5		1
2	60170935	385 353 1045	OUTPUT FLANGE D.150		1
2		385 353 1245	OUTPUT FLANGE D.180		1
3		000 997 7747	SEAL RING 35X16X10		1
3	60171817	016 997 6747	OIL SEAL 68X85X10 MM		1
4	60170919	615 353 0125	GROOVED NUT		1
5		000933 008005	SCREW M8X12		1
6		327 353 0373	RETAINER		1
7	60170210	370 353 0051	SPACER		1
8	98170047	006 981 1705	BEARING 65X165X36,1 MM	(4)	1
8	98170290	. 006 981 1705	BEARING 65X165X36,1 MM	(5)	1
9	60171157	301 353 8952	SHIM 6,60 MM		1
10		385 353 3862	WASHER		1
11	98170066	006 981 3505	BEARING 65X165X40 MM		1
12	60171147	301 353 3352	WASHER T.0,10 MM		1
13	98170055	007 981 7901	BEARING 40X90X27 MM		1
14		912009 040100	LOCK RING 40X1,50		1
15		385 994 0037	ELASTIC RING		1
16	60170676	301 350 2339	CROWN WHEEL/PINION 47:12	R.3,92(A)	1
16	60170866	385 350 4139	CROWN WHEEL/PINION 47:9	R.5,22(A)	1
16	60170833	652 350 0339	CROWN WHEEL/PINION 44:12	R.3,66(B)	1
16	60170868	385 350 4539	CROWN WHEEL/PINION 44:12	R.3,66(6)	1	ALT
16	60170892	385 350 4339	CROWN WHEEL/PINION 41:7	R.5,85(A)	1
16	60200200	300 350 0039	CROWN WHEEL/PINION 40:12	R.3,33(B)	1
17	60170983	385 350 1427	DIFF. CASE EMPTY	(A)	1
17	60170900	387 350 2123	DIFF. CASE COMPLETE	(A)(3)	1	SOS
17	60170983	385 350 1427	DIFF. CASE EMPTY	(A)(C)	1
17	60200303	615 350 2223	DIFF. CASE COMPLETE	(A)(D)	1
17	60171438	615 350 3623	DIFF. CASE COMPLETE	(7)	1	ALT
17	60200140	615 350 2323	DIFF. CASE COMPLETE	(B)(D)	1
18	98170213	004 981 4305	BEARING 90X140X32 MM		2
19	60170920	615 353 0325	GROOVED NUT		2
20		914112 008014	SCREW M8X16		2
21		385 353 0373	RETAINER		2

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
22	60170644	385 350 0040	DIFFERENTIAL GEAR KIT		1
23	60170645	617 353 0120	DIFFERENTIAL SPIDER		1
24	60170907	615 353 0115	SIDE GEAR 20 T.-38 SPL.		2
25	60200051	385 353 2262	THRUST WASHER T.1,45 MM		2
25	60171031	615 353 0462	THRUST WASHER T.1,50 MM		2
26	60170646	617 353 0114	DIFF. PINION 11 T.		4
27	60170647	385 353 1262	THRUST WASHER 1X29 MM		4
28	60200304	615 350 0040	DIFFERENTIAL REPAIR KIT		1
29	60170909	615 353 0120	DIFFERENTIAL SPIDER	(C)(D)	1
30	60170907	615 353 0115	SIDE GEAR 20 T.-38 SPL.	(C)(D)	2
31	60171031	615 353 0462	THRUST WASHER T.1,50 MM		2
31	60200051	385 353 2262	THRUST WASHER T.1,45 MM		2
32	60170938	615 353 0051	SPACER	(C)(D)	4
33	60170969	615 981 0186	NEEDLE	(C)(D)	165
34	60170939	615 353 0251	SPACER	(C)	4
35	60170976	615 353 0014	DIFF. PINION 11 T.	(C)	4
35	60200210	615 353 0214	DIFF. PINION 11 T.	(1)	4
35	60171200	615 353 0314	DIFF. PINION 10 T.	(D)(2)	4	NSS
36	60170948	615 353 0162	THRUST WASHER	(C)	4
36	60200204	615 353 0262	THRUST WASHER	(D)	4
37		385 356 0282	OIL COLLECTOR		1
38		005 997 4446	SEAL RING 175X145X13 MM		1
39	98170063	005 981 8505	BEARING 100X150X39 MM		1
40	60171148	385 356 1401	WHEEL HUB		1
41	98170065	005 981 9905	BEARING 85X140X41 MM		1
42		301 423 0801	BRAKE DRUM		1
43		385 331 0052	WASHER		1
44		617 356 0026	GROOVED NUT		2
45		385 356 0073	LOCK RING		1
46	60170967	385 357 5501	DRIVE SHAFT D.LOCK L=1024		1
47		317 356 0080	GASKET		1
48		615 356 0020	COVER		1

(AB) USE BEVEL GEAR & PINION SETS AND HOUSING TOGETHER
(C) OLD VERSION
(D) NEW VERSION
(1) UP TO AXLE 915445
(2) FROM AXLE 915446
(3) WE SUPPLY THE ALTERNATIVE PRODUCTION WITH NEEDLES 60200303 - 615 350 2223 (FIG.17)
(4) PREMIUM BRAND
(5) AFTERMARKET VERSION
(6) WE SUPPLY THE ALTERNATIVE VERSION: 60170833 - 652 350 0339 (FIG.16)
(7) WE SUPPLY THE ALTERNATIVE VERSION WITH LOOKING, INTERCHANGEABLE: 60200303 - 615 350 2223 (FIG.17)
