(ABC) TO BE COUPLED TOGETHER
(D) TO BE COUPLED TOGETHER
(1) 346 357 1701 (FIG.12) REPLACED BY 1 PC 658 357 0601 (FIG.12) + 1 PC 009045 050001 (FIG.6)
(5) TO BE ORDER TOGETHER 013 997 9447 (FIG.21)
(6) TO BE ORDER TOGETHER 016 997 5647 (FIG.21)
(7) WITH 346 334 0320 (FIG.29)
(8) WITH 624 356 0020 (FIG.29)
(10) 346 357 2801 (FIG.12) REPLACED BY 658 357 0801 (FIG.12) + 009045 050001 (FIG.6)

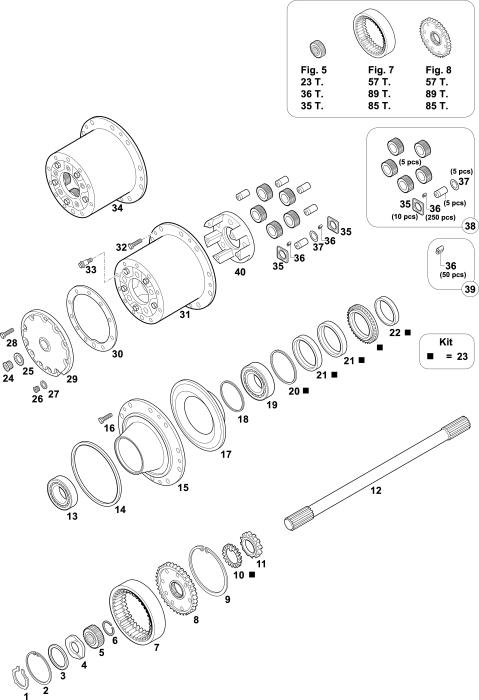

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
19	98170297	003 981 2605	BEARING 105X160X43 MM		1
20	60171192	946 356 0127	RING		1
21	60171606	016 997 5647	OIL SEAL 145X175X14/12 MM	(5)	2
21	60171829	013 997 9447	OIL SEAL 145X175X13/12 MM	(6)	2
22	60170635	355 356 1215	THRUST WASHER		1
23		942 350 3835	REPAIR KIT		1
24	60171247	355 997 0232	PLUG		1
25		007603 045100	SEAL RING 45X52 MM		1
26	60531366	210 997 0032	PLUG	(7)	1
26	60532427	624 997 0032	PLUG	(8)	1	NSS
27	95534377	007603 024106	SEAL RING 24X29X2 MM		1
28	60532426	000933 010164	SCREW M10X22	(7)	10	NSS
28		000 990 6404	SCREW M10X18	(8)	10
29	60171137	624 356 0020	COVER		1
30	60171580	650 356 0180	GASKET		1
30		650 356 0080	GASKET		1
31	60200238	346 350 3033	HUB EMPTY	(A)	1
31	60171165	355 350 5133	WHEEL HUB EMPTY	(B)	1
31	60171196	346 350 6833	WHEEL HUB EMPTY	(CD)	1
32		005 990 6104	SCREW TCEIM12X1,5X32CL8,8		5
33	60170791	942 990 0214	SCREW M14X1,5X60-CL10.9		5
34		346 350 1209	HUB COMPLETE R.1:3,478	(A)	1
34	60200448	346 350 1809	HUB COMPLETE R.1:3,472	(B)	1
34	60200471	346 350 2409	HUB COMPLETE R.1:3,429	(CD)	1
35	60200172	346 354 1362	THRUST WASHER 60X57X3 MM		10
36	60170385	*****	ROLLER	(A)	250	NSS
36	60200174	001 981 5087	ROLLER	(BCD)	250	NSS
37	60170205	355 354 0162	SPACER	(AB)	5
37	60170063	*****	SPACER	(CD)	5	NSS
38	60170735	346 350 0654	REPAIR KIT 17 T.	(A)	1
38	60200170	653 350 0054	REPAIR KIT 26 T.	(B)	1
38	60170047	652 350 0054	REPAIR KIT 24 T.	(CD)	1
39	60170194	387 981 0187	NEEDLE KIT (50 PCS)	(A)	1
40	60170604	*****	CARRIER HUB 1632	(A)	1
