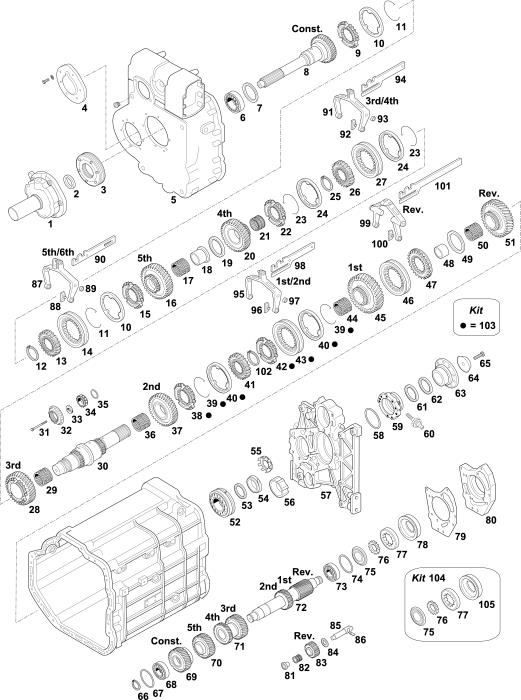

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	60531778	389 261 4318	FRONT COVER		1
2	60530993	015 997 1647	OIL SEAL 52X68X8 MM		1
3	60531122	389 261 0665	OIL COLLECTOR 75X16	(1)	1
4	60531181	389 261 1933	ALUMINIUM COVER		1
5		389 261 9902	FRONT GEARBOX HOUSING		1
6	98530179	011 981 1305	BEARING 75X140X34,3 MM	(23)	1	ALT
6	98530767	. 011 981 1305	BEARING 75X140X34,3 MM	(24)	1
7	60531394	017 997 9947	OIL SEAL 75X94X11,50 MM		1
8	60530892	389 262 3102	INPUT SHAFT 26 T.		1
9	60530126	389 262 1134	SYNCHRONIZER CONE	(A)	1
9	60531159	389 262 8534	SYNCHRONIZER CONE	(B)	1
10	60530518	389 262 0637	SYNCHRONIZER RING	(20)	2
11	60530991	387 262 1093	ELASTIC RING		2
12		000471 040002	LOCK RING		1
13	60530089	389 262 1935	SYNCHRONIZER HUB 60 T.	(A)	1
13	60531099	389 262 4535	SYNCHRONIZER HUB 72 T.	(B)	1
14	60530693	945 262 2823	SLIDING SLEEVE	(A)	1
14	60531165	389 262 2023	SLIDING SLEEVE	(B)	1
15	60530767	945 262 4034	SYNCHRONIZER CONE	(A)	1
15	60531680	945 262 5134	SYNCHRONIZER CONE	(B)	1
16	60531918	389 262 1215	GEAR 5TH SPEED 30 T.		1
17	98530389	011 981 7610	NEEDLE BEARING 75X83X58		1
18	60531083	389 262 0650	BUSH T.58,00 MM		1
19	60531562	389 262 9052	WASHER		1
20	60531893	389 262 0814	GEAR 4TH SPEED 35 T.	(18)	1
20		389 262 1014	GEAR 4TH SPEED	(19)	1
21	98530121	009 981 1510	NEEDLE BEARING 78X86X35 W		1
22	60530203	389 262 5434	SYNCHRONIZER CONE	(A)	1
22	60531927	945 262 5034	SYNCHRONIZER CONE	(B)	1
23	60530991	387 262 1093	ELASTIC RING		2
24	60530518	389 262 0637	SYNCHRONIZER RING	(20)	2
25		389 262 0173	SEEGER RING T.2,90 MM	(2)	1
25		389 262 0373	SEEGER RING T.3,00 MM	(2)	1
25	60531794	389 262 0573	SEEGER RING T.3,10 MM	(2)	1

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
26	60530766	389 262 2735	SYNCHRONIZER HUB 60 T.	(A)	1
26	60531168	389 262 4435	SYNCHRONIZER HUB 72 T.	(B)	1
27	60530693	945 262 2823	SLIDING SLEEVE	(A)	1
27	60531165	389 262 2023	SLIDING SLEEVE	(B)	1
28	60530294	389 262 2713	GEAR 3RD 47 T. WITH HOLES	(A)	1
28	60531609	976 262 1113	GEAR 3RD 47 T.W/OUT HOLES	(A)	1
28	60531164	389 262 4013	GEAR 3RD SPEED 47 T.	(B)	1
29	98530207	008 981 8610	NEEDLE BEARING92X100X49,5		1
30	60530296	389 262 1705	MAIN SHAFT	(4)	1
30	60532156	389 262 4405	MAIN SHAFT	(5)	1
31	60531170	389 990 1819	SCREW	(4)	1
32	60531472	945 990 0250	NUT M30X1,5	(5)	1
33	60531171	389 262 0062	WASHER	(4)	1
34	98530327	009 981 8205	BEARING 38,1X40,39 MM	(4)	1
34	98530204	015 981 1605	BEARING 39,7X40,4 MM		1
35		389 262 9252	SPACER T.0,10 MM	(4)	1
35		389 262 9352	SPACER T.0,15 MM	(4)	1
35		389 262 1055	SPACER T.0,70 MM	(4)	1
36	98530207	008 981 8610	NEEDLE BEARING92X100X49,5		1
37	60530317	389 262 3312	GEAR 2ND SPEED 45 T.		1
38	60530521	945 262 0434	SYNCHRONIZER CONE	(C)	1
38	60531669	945 262 4934	SYNCHRONIZER CONE	(D)(22)	1
39	60531030	387 262 0893	ELASTIC RING	(22)	2
40	60530684	389 262 0737	SYNCHRONIZER RING	(20)(22)	2
41	60530319	389 262 1135	SYNCHRONIZER HUB 66 T.	(C)	1
41	60531167	389 262 5635	SYNCHRONIZER HUB	(D)	1
42	60530521	945 262 0434	SYNCHRONIZER CONE	(C)	1
42	60531668	945 262 4834	SYNCHRONIZER CONE	(D)(22)	1
43	60531127	389 262 1223	SLIDING SLEEVE	OLD(21)	1	SOS
43	60530694	945 262 2723	SLIDING SLEEVE	NEW(C)	1
43	60531166	389 262 2123	SLIDING SLEEVE	(D)(22)	1
44	98530214	021 981 9410	NEEDLE BEARING 85X93X45 W		1
45	60530450	389 262 1911	GEAR 1ST SPEED 50 T.		1
46	60530777	389 262 1723	SLIDING SLEEVE	(E)(7)	1
46	60530776	389 262 1823	SLIDING SLEEVE	(F)(8)	1

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
47	60532004	389 262 4135	SYNCHRONIZER HUB	(E)(7)	1
47	60532181	389 262 4235	SYNCHRONIZER HUB	(F)(8)	1
48		389 262 0950	BUSH	(4)	1
48		389 262 1750	BUSH	(6)	1
49		389 262 8952	SPACER		1
50	98530214	021 981 9410	NEEDLE BEARING 85X93X45 W		1
51	60530765	389 262 1333	REVERSE GEAR 47 T.		1
52	98530328	009 981 8305	BEARING 65X140X36 MM	(4)	1
52	98530329	012 981 3705	BEARING 65X140X13,5 MM	(6)	1
53		389 262 8354	SPACER	(9)	1
54		387 264 0030	SPEEDOMETER GEAR	(10)	1
55	60531387	387 262 0828	PULSE DISK	(13)	1
56	60532847	387 262 0928	PULSE DISK		1
57		387 261 7420	REAR COVER	(17)	1
57		387 261 6320	REAR COVER	(11)	1
58	60532211	020 997 7848	O-RING 138X3	(12)	1
58	60531435	028 997 2248	O-RING 140X3	(12)	1
59		389 261 1520	HOUSING COVER	(12)	1
60	60532141	015 542 2417	TRANSDUCER	(12)	1
61	60531354	017 997 2547	OIL SEAL 80X100X10 MM	(12)	1
62	60531355	017 997 7947	OIL SEAL 80X100X10 MM	(12)(24)	1
62	60533022	. 017 997 7947	OIL SEAL 80X100X10 MM	(12)(23)	1
62	60532836	020 997 3447	OIL SEAL 80X100X10 MM	(12)(25)	1	ALT
63		387 262 1045	OUTPUT FLANGE D.150	(2)(4)	1
63		976 262 0145	OUTPUT FLANGE D.150	(2)(6)(13)	1
63	60532848	947 262 0345	OUTPUT FLANGE D.150	(1)	1
63		629 262 0045	OUTPUT FLANGE D.150	(1)	1
63		387 264 2445	OUTPUT FLANGE D.162	(1)	1
63		387 264 3345	OUTPUT FLANGE D.180	(14)	1
63		387 264 3245	OUTPUT FLANGE D.182	(11)	1
64		389 411 0062	WASHER	(15)	1
64		976 262 0362	WASHER	(16)	1
65	60531476	389 990 0119	SCREW	(15)	1
65		387 990 2219	SCREW	(16)	1
66		387 262 2773	SEEGER RING T.2,00 MM		1

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
66		387 994 1641	SEEGER RING T.2,25 MM		1
66	60531516	387 994 1541	SEEGER RING T.2,35 MM		1
66	95530517	387 994 1341	ELASTIC RING T.2,40 MM		1
66	60531517	387 994 1141	SEEGER RING T.2,55 MM		1
66	60531518	387 994 0941	SEEGER RING T.2,65 MM		1
66	60531519	387 994 0741	SEEGER RING T.2,75 MM		1
66	60531520	387 994 0541	SEEGER RING T.2,85 MM		1
66	60531521	387 994 0341	SEEGER RING T.2,95 MM		1
66		900055 050300	SEEGER RING T.3,00 MM		1
67		389 263 1352	SPACER T.0,10 MM		1
67		389 263 1452	SPACER T.0,15 MM		1
68	98530107	015 981 9005	BEARING 50,8X100X35 MM		1
69	60530455	389 263 1310	CONSTANT GEAR 51 T.		1
70	60530574	389 263 0115	GEAR 5TH SPEED 47 T.		1
71	60530893	389 263 2113	DOUBLE G. 3RD/4TH 33/38T.		1
72	60530762	389 263 1102	COUNTERSHAFT 12/19 T.		1
73	98530294	012 981 3605	BEARING 45X110X12 MM		1
74	60532171	406 337 0252	SPACER T.0,10 MM		1
74		406 337 2952	SPACER T.0,15 MM		1
74	60532173	406 337 0352	SPACER T.0,20 MM		1
74	60531325	389 262 4452	SPACER T.0,40 MM		1
74	60531454	389 262 2054	SPACER T.0,50 MM		1
74	60532104	389 262 2254	SPACER T.0,60 MM		1
74	60531453	389 262 2454	SPACER T.0,70 MM		1
75	60531759	389 269 2001	PUMP COVER		1
76	60531118	389 269 1606	INTERNAL ROTOR 9 T.		1
77	60531063	389 269 0706	EXTERNAL ROTOR		1
78	60531802	389 269 2101	BODY OIL PUMP		1
79		389 261 1580	GASKET		1
80	60532481	656 261 0133	REAR COVER		1
81	60531985	389 263 0650	BUSH T.63,10 MM		1
82	98530295	015 981 4110	NEEDLE BEARING 48X60X31		1
83	60530763	389 263 0931	REVERSE GEAR 21 T.		1
84		389 263 0162	WASHER		1
85	60532182	976 263 0330	REVERSE PIN		1

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
86		976 263 0041	KEY		1
87		389 260 4130	FORK 5TH/6TH SPEED		1
88	60530890	947 265 0349	SLIDE		2
89		220 981 1710	BEARING		2
90		389 265 9904	SELECTOR ROD 5TH/6TH		1
91		389 260 3930	FORK 3RD/4TH SPEED		1
92	60530890	947 265 0349	SLIDE		2
93		220 981 1710	BEARING		2
94		389 265 7604	ROD 3RD/4TH SPEED		1
95		387 260 4930	FORK 1ST/2ND SPEED		1
96	60530890	947 265 0349	SLIDE		2
97		220 981 1710	BEARING		2
98		389 265 7504	ROD 1ST/2ND SPEED		1
99	60531758	656 260 0230	REVERSE FORK		1
100	60531852	947 265 0249	SLIDE		2
101		389 260 2831	REVERSE ROD		1
102		387 262 4173	SEEGER RING T.2,90 MM	(3)	1
102	60531795	387 262 4373	SEEGER RING T.3,00 MM	(3)	1
102		387 262 4573	SEEGER RING T.3,10 MM	(3)	1
102		387 262 4673	SEEGER RING T.3,15 MM	(3)	1
103	60532803	*****	SYNCHRONIZER KIT 1ST/2ND		1
104	60532707	*****	OIL PUMP KIT		1
105	60532323	656 269 0001	BODY OIL PUMP		1

(ABCDEF) TO BE COUPLED TOGETHER
(1) ONLY FOR SERIES 714.690-691
(2) ONLY FOR SERIES 714.690-691-699
(3) ONLY FOR SERIES 714.696-697-698
(4) UP TO GEARBOX 372851
(5) FROM GEARBOX 513020
(6) FROM GEARBOX 372852
(7) EXCLUDED SERIE 714.691
(8) ONLY FOR SERIE 714.691
(9) ONLY FOR SERIES 714.697-699
(10) ONLY FOR SERIE 714.699
(11) ONLY FOR SERIE 714.698
(12) EXCLUDED SERIES 714.697-699
(13) ONLY FOR SERIE 714.697
(14) ONLY FOR SERIE 714.696
(15) UP TO GEARBOX 003984
(16) FROM GEARBOX 003985
(17) EXCLUDED SERIES 714.696-698
(18) WITH WASHER FIG.19
(19) WITHOUT WASHER FIG.19
(20) MOLYBDENUM VERSION
(21) MULTIPLE REPLACEMENT: 1 PC. 60530694 - 945 262 2723 (FIG.43) + 2 PCS. 60530890 - 947 265 0349 (FIG.96)
(22) COMPONENT OF KIT 60532803 - ***** (FIG.103)
(23) PREMIUM BRAND
(24) AFTERMARKET VERSION
(25) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE: 60531355 - 017 997 7947 (FIG.62)
