SchemaEuroricambi

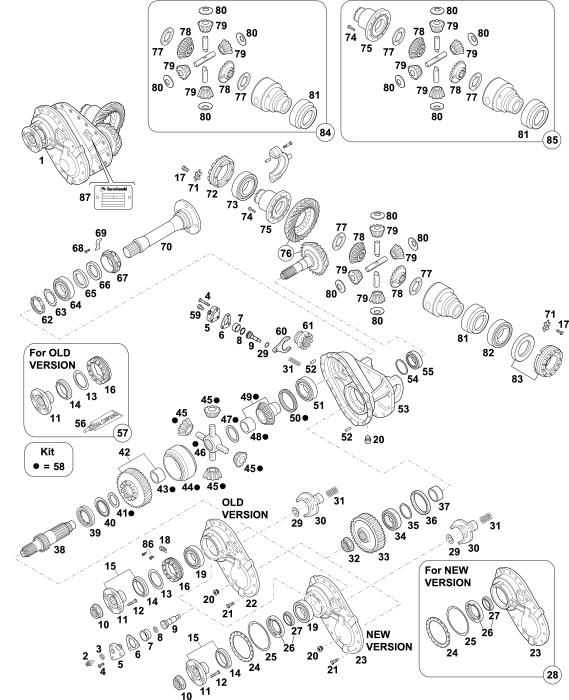

Fig.

Our No.

Part No.

Description

Notes

Q.ty

TP

1

60172224

942 350 1025

GROUP DIFF. COMPL.R.1,208

(B)(9)

1

1

60172225

942 350 1525

GROUP DIFF. COMPL.R.1,208

(B)(8)

1

1

60172226

942 350 1125

GROUP DIFF. COMPL.R.1,208

(A)(9)

1

1

60172227

942 350 1625

GROUP DIFF. COMPL.R.1,208

(A)(8)

1

1

60172228

942 350 1225

GROUP DIFF. COMPL.R.1,333

(A)(9)

1

1

60172207

942 350 1725

GROUP DIFF. COMPL.R.1,333

(A)(8)

1

1

60172229

942 350 1325

GROUP DIFF. COMPL.R.1,500

(A)(9)

1

1

60172230

942 350 1825

GROUP DIFF. COMPL.R.1,500

(A)(8)

1

1

60172231

942 350 1425

GROUP DIFF. COMPL.R.1,706

(A)(9)

1

1

60172232

942 350 1925

GROUP DIFF. COMPL.R.1,706

(A)(8)

1

2

60171482

001 545 8409

SWITCH

1

3

007603 018013

SEAL RING

1

3

007603 018100

SEAL RING 18X22 MM

1

4

60171590

910143 008003

SCREW TORX M8X30 CL.8.8

6

NSS

5

944 353 0906

COVER

2

5

60171589

944 353 1106

COVER

2

6

60171512

942 353 0180

GASKET

2

7

60171464

942 353 0050

BUSH

2

7

60171441

948 353 0250

BUSH

(10)

2

SOS

8

60171511

023 997 1048

O-RING 34X3

2

9

60171430

948 353 0035

PIN

2

10

60170893

385 351 0572

NUT M55X1,5-SW65

1

11

60171275

942 353 0645

OUTPUT FLANGE D.180

(1)

1

11

60171414

942 353 1045

OUTPUT FLANGE D.180 DIN9T

(C)

1

11

60171416

942 353 1245

OUTPUT FLANGE D.200 DIN9T

(D)

1

12

60172210

*****

SCREW M14X1,5X50-CL.10.8

4

NSS

13

56170238

014 997 1246

OIL SEAL 85X110X12/17 MM

(C)(D)

1

14

60171411

942 351 0188

GUARD

1

15

60171413

000 350 1145

OUTPUT FLANGE D.180 DIN9T

1

NSS

15

60171415

*****

OUTPUT FLANGE D.200 DIN9T

1

NSS

16

56170237

942 353 0925

GROOVED NUT M142X1,5

1

17

56170446

304017 008026

SCREW M8X1,25X16 CL.10.9

2

NSS

18

56170451

*****

RETAINER

1

NSS

19

98170154

003 981 0605

BEARING 65X140X36 MM

1

Last update 04/2022

Fig.

Our No.

Part No.

Description

Notes

Q.ty

TP

20

56170393

*****

OIL PLUG M24X1.5-SW 14

2

NSS

21

56170456

019 990 2501

SCREW M12X1,5X35 CL.10.9

18

NSS

22

56170390

942 351 0008

COVER

1

23

60171682

942 351 0108

COVER

1

NSS

24

60171679

942 990 0055

RING M155

1

25

60171680

942 353 0373

WASHER

1

26

60171681

000 350 0243

COMPLETE GROOVED NUT

1

27

56170238

014 997 1246

OIL SEAL 85X110X12/17 MM

1

28

60171616

000 350 4403

COVER KIT

1

29

56170443

002 353 5477

WASHER 22X30X0,50 MM

2

NSS

29

60171508

948 353 0162

WASHER 22X30X1,00 MM

2

NSS

30

56170252

942 353 0134

SHIFT FORK

1

31

56170442

948 993 0001

SPRING

2

NSS

32

60170893

385 351 0572

NUT M55X1,5-SW65

1

33

60171045

942 353 0315

GEAR 37 T.

(A)

1

33

60171356

942 353 0215

GEAR 35 T.

(B)

1

34

98170059

005 981 0505

BEARING 65X140X51 MM

(6)

1

34

98170319

. 005 981 0505

BEARING 65X140X51 MM

(7)

1

35

001 353 0451

SHIM 3,70 MM

1

35

001 353 0151

SHIM 4,00 MM

1

35

60171909

346 353 2051

SHIM 4,60 MM

1

35

60171040

346 353 2251

SHIM 4,70 MM

1

35

60171041

346 353 1451

SHIM 4,80 MM

1

35

60171146

346 353 1751

SHIM 5,00 MM

1

35

60171777

346 353 0077

SHIM 5,20 MM

1

NSS

36

60171699

346 353 1429

OIL COLLECTOR

1

NSS

37

60172213

942 353 0150

BUSH D.69X80X32

1

38

60171268

942 353 0435

LAYSHAFT

1

39

60171269

942 353 0236

DIFF.LOCK SLEEVE

1

40

60171270

942 353 0062

WASHER

1

41

56170260

*****

WASHER

1

42

60171355

000 353 1685

COMPLETE GEAR 37 T.

(A)

1

42

60171487

000 353 1585

COMPLETE GEAR 39 T.

(B)

1

43

56170259

000 353 1450

BUSH D.75 MM

OLD

1

43

000 353 1550

BUSH D.75 MM

NEW

1

Last update 04/2022

Fig.

Our No.

Part No.

Description

Notes

Q.ty

TP

44

56170257

*****

DIFF.HOUSING EMPTY

1

45

56170261

*****

DIFF. PINION 9 T.

4

46

56170256

*****

SPIDER

1

47

60171272

002 353 9177

WASHER 55,1X69X4 MM

1

48

60170587

346 353 0650

BUSH 50X57X41 MM

1

49

56170262

*****

SIDE GEAR 14 T - 26 SPL.

1

50

56170258

*****

GUARD

1

51

98170194

942 981 0205

BEARING 75X130X33,25 MM

1

52

56170441

*****

PIN 12X28 MM

2

NSS

53

56170463

*****

DIFF. CASE EMPTY

1

54

60172214

002 353 7677

WASHER 128,5X149,95X2,30

1

NSS

55

98170054

003 981 2905

BEARING 70X150X54 MM

1

56

60171869

001 989 8920

SEAL COMPOUND

1

NSS

57

60171867

942 350 1545

KIT FLANGE D.180MM DIN 9T

(C)(3)

1

57

60171868

942 350 1645

KIT FLANGE D.200MM DIN 9T

(D)(3)

1

58

56170198

000 350 8123

REPAIR KIT

(5)

1

59

60171544

*****

SCREW M18X1,5X40 CL.10.9

1

NSS

60

60171509

948 353 0034

FORK

1

61

56170137

*****

DIFF.LOCK SLEEVE

1

62

60170962

674 356 0226

GROOVED NUT

1

63

60200343

070952 060102

LOCK RING

1

64

98170043

005 981 5925

BEARING 60X110X22 MM

(6)

1

64

98170241

. 005 981 5925

BEARING 60X110X22 MM

(7)

1

65

60171091

017 997 3147

OIL SEAL 75X95X10/9,5 MM

OLD

1

65

014 997 4346

OIL SEAL 75X95X10/9,5 MM

NEW

1

66

60171092

017 997 3047

OIL SEAL 75X95X10/9,5 MM

1

67

60171290

942 353 0225

GROOVED NUT

1

67

942 353 1025

GROOVED NUT

1

68

60171521

304017 008039

SCREW M8X1,25X12

1

NSS

69

60171918

352 353 0073

RETAINER

1

70

60171844

942 353 0235

DRIVE SHAFT W/FLANGE

1

71

60171519

970 353 0073

RETAINER

2

NSS

72

60171878

970 353 0025

GROOVED NUT M155X1,5

1

73

98170083

001 981 7205

BEARING 100X150X32 MM

1

74

60171840

001 990 5000

SCREW M16X1,5X75-12.9

16

NSS

Last update 04/2022

Fig.

Our No.

Part No.

Description

Notes

Q.ty

TP

75

56170351

*****

DIFFERENTIAL CASE COVER

1

76

56170355

942 350 2539

CROWN WHEEL/PINION 29:24

R.1,21

1

76

56170364

942 350 2739

CROWN WHEEL/PINION 28:21

R.1,33

1

76

56170358

942 350 2839

CROWN WHEEL/PINION 27:18

R.1,50

1

76

56170361

942 350 2639

CROWN WHEEL/PINION 29:17

R.1,71

1

77

60170091

346 353 2262

THRUST WASHER

STEEL

2

78

60170765

346 353 0815

SIDE GEAR 16 T.-40 SPL.

2

79

60170764

346 353 1014

DIFF. PINION 11 T.

4

80

60171842

346 353 0524

THRUST WASHER

4

81

60171832

942 353 0428

OIL COLLECTOR

1

NSS

82

98170164

005 981 1505

BEARING 85X130X29 MM

1

83

942 353 0125

GROOVED NUT

1

83

60171877

942 350 0143

GROOVED NUT M132X1,5

1

84

56170668

*****

DIFF. CASE COMPLETE

1

85

56170353

000 350 8023

DIFF. CASE COMPLETE

1

86

56170450

*****

SCREW M8X20 CL.10.9

2

NSS

87

60171545

*****

UNIT IDENTIFICATION PLATE

1

NSS

Note

(ABCD) TO BE COUPLED TOGETHER
(1) UP TO AXLE 935174
(3) TO BE USED FOR THE COVER 56170390 - 942 351 0008 (FIG.22)
(5) 56170198 - 000 350 8123 (FIG.58) IS REPLACED BY 000 350 8623 (NOT ILLUSTRATED IN THIS TABLE)
(6) AFTERMARKET VERSION
(7) PREMIUM BRAND
(8) USE OUTPUT FLANGE D.200
(9) USE OUTPUT FLANGE D.180
(10) MULTIPLE REPLACEMENT: 1 PC. 60171464 - 942 353 0050 (FIG.7) + 1 PC. 60171512 - 942 353 0180 (FIG.6)
