(AB) TO BE COUPLED TOGETHER
(CD) TO BE COUPLED TOGETHER
(1) WE ONLY SUPPLY THE REINFORCED VERSION WITH LOCKING AND STOP RINGS: 658 357 1501 (FIG.13) + 2 PCS 009045 050001 (FIG.6)
(2) TO BE ORDER TOGETHER 013 997 9447 (FIG.25)
(3) TO BE ORDER TOGETHER 016 997 5647 (FIG.25)

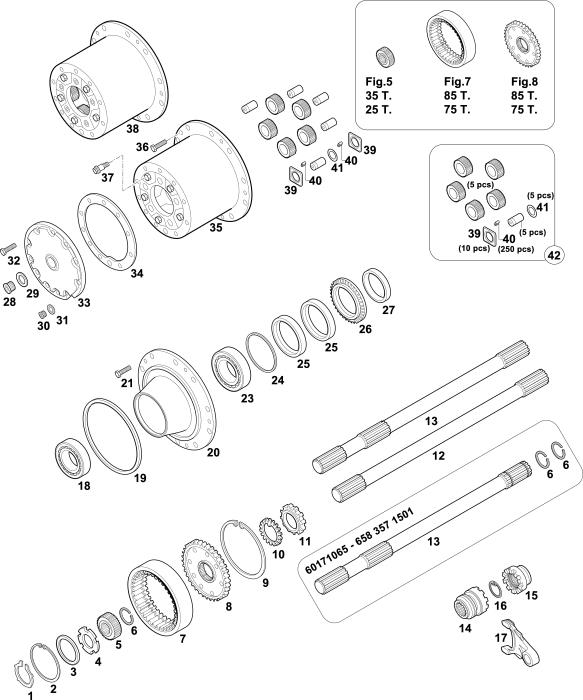

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
20		942 356 1301	WHEEL HUB		1
21		000 401 3771	SCREW		10
23	98170297	003 981 2605	BEARING 105X160X43 MM		1
23	98170061	004 981 0905	BEARING 110X170X47 MM		1
24	60171192	946 356 0127	RING		1
24		942 356 0027	WASHER		1
25	60171606	016 997 5647	OIL SEAL 145X175X14/12 MM	(2)	2
25	60171829	013 997 9447	OIL SEAL 145X175X13/12 MM	(3)	2
26	60171587	942 356 0715	TRANSDUCER		1
27	60170635	355 356 1215	THRUST WASHER		1
28	60171247	355 997 0232	PLUG		1
29		007603 045100	SEAL RING 45X52 MM		1
30	60532427	624 997 0032	PLUG		1	NSS
31	95534377	007603 024106	SEAL RING 24X29X2 MM		1
32		000 990 6404	SCREW M10X18		10
33	60171137	624 356 0020	COVER		1
34		650 356 0080	GASKET		1
35	60171783	000 350 0433	WHEEL HUB EMPTY	(A)	1
35	60171806	000 350 0533	WHEEL HUB EMPTY	(B)	1
36		005 990 6104	SCREW TCEIM12X1,5X32CL8,8		5
37	60170791	942 990 0214	SCREW M14X1,5X60-CL10.9		5
38	60171784	942 350 1509	HUB COMPLETE R.1:3,429	(A)	1
38	60171809	942 350 1709	HUB COMPLETE R.1:4,000	(B)	1
39	60200172	346 354 1362	THRUST WASHER 60X57X3 MM		10
40	60200174	001 981 5087	ROLLER	(AB)	250	NSS
41	60170063	*****	SPACER	(A)	5	NSS
41	60170205	355 354 0162	SPACER	(B)	5
42	60170047	652 350 0054	REPAIR KIT 24 T.	(A)	1
42	60171169	355 350 0454	REPAIR KIT 24 T.	(B)	1
