(AB) TO BE COUPLED TOGETHER
(1) EXCLUDED SERIES 746.210
(2) UP TO AXLE M 053279, N 287999
(3) FROM AXLE M 053280, N 288000
(4) COMPOSED BY: 2 PCS 60171973 - 946 353 0052 (FIG.22) + 2 PCS 60171974 - 946 353 0152 (FIG.22) + 1 PC 60171975 - ***** (FIG.22) + 1 PC 60171976 - ***** (FIG.22) + 1 PC 60170400 - *****(FIG.23)
(5) NOT SUPPLIED SEPARATELY, WE SUPPLY: 60171730 - ***** (FIG.28)
(6) NOT SUPPLIED SEPARATELY, WE SUPPLY: 60171734 - ***** (FIG.28)
(7) WE ALTERNATIVELY SUPPLY THE VERSION INTERCHANGEABLE: 60171373 - 948 350 0123 (FIG.41)
(8) MULTIPLE REPLACEMENT: 1 PC 60171464 - 942 353 0050 (FIG.3) + 1 PC 60171512 - 942 353 0180 (FIG.12)

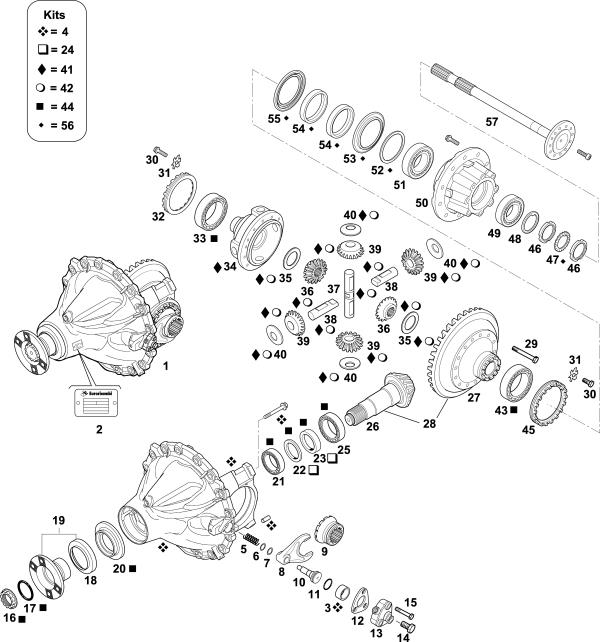

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
26	60171733	*****	PINION 13 T.	(B)(6)	1	NSS
27	60171731	960 353 0312	CROWN 37 T.	(A)(5)	1	NSS
27	60171735	*****	CROWN 40 T.	(B)(6)	1	NSS
28	60171730	*****	CROWN WHEEL/PINION 37:13	(A)R.2.846	1
28	60171734	*****	CROWN WHEEL/PINION 40:13	(B)R.3,077	1
29	60171518	006 990 7404	SCREW M18X1,5X60-CL.12,9		16
30	60171521	304017 008039	SCREW M8X1,25X12		2	NSS
31	60171519	970 353 0073	RETAINER		2	NSS
32	60171878	970 353 0025	GROOVED NUT M155X1,5		1
33	98170083	001 981 7205	BEARING 100X150X32 MM		1
34	60171369	948 353 0101	DIFFERENTIAL HALF HOUSING		1
35	60171297	948 353 0062	THRUST WASHER		2
36	60171296	948 353 0015	SIDE GEAR 14 T.- 40 SPL.		2	NSS
37	60171300	948 353 0021	LONG PIN		1	NSS
38	60171301	948 353 0121	SHORT PIN		2	NSS
39	60171298	948 353 0014	DIFF. PINION 9 T.		4	NSS
40	60171299	948 353 0024	THRUST WASHER		4
41	60171373	948 350 0123	HALF HOUSING + DIFF. KIT		1
41	60172015	948 350 0023	HALF HOUSING + DIFF. KIT	(7)	1	ALT
42	60171235	958 350 0140	DIFFERENTIAL GEAR KIT		1
43	98170082	014 981 4405	BEARING 120X180X38 MM		1
44	60171241	*****	REPAIR KIT HL 6		1
45	60171520	948 353 0025	GROOVED NUT M185X1,5		1
46	60171703	946 356 0226	GROOVED NUT M100X1,5		2
47		946 356 0073	SPACER		1
48		946 356 0152	WASHER		1
49	98170077	009 981 4305	BEARING 100X157X42 MM		1
50		946 356 0201	WHEEL HUB EMPTY		1
50		946 356 0701	WHEEL HUB EMPTY	(1)	1
50		946 356 1901	WHEEL HUB EMPTY	(1)	1
51	98170061	004 981 0905	BEARING 110X170X47 MM		1
52	60171192	946 356 0127	RING		1
53		013 997 8946	OIL SEAL 145X175X16 MM	(2)	1
53	60171794	013 997 3546	OIL SEAL 145X175X15 MM	(3)	1
53	60171803	014 997 0546	OIL SEAL 145X175X8 MM		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
54	60171702	946 356 0015	PRESSURE RING		2
55	60171587	942 356 0715	TRANSDUCER		1
56		942 350 3935	REPAIR KIT	(2)	1
56		940 350 1035	REPAIR KIT	(3)	1
57	60171881	948 357 1001	DRIVE SHAFT L=1000 MM		1
57	60171882	948 357 0801	DRIVE SHAFT L=1025 MM	(1)	1
