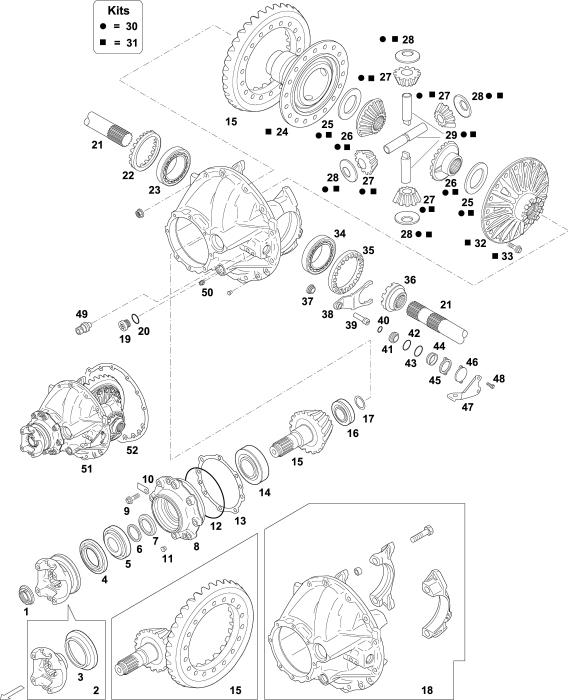

SchemaEuroricambi

(A) TO BE COUPLED TOGETHER
(B) TO BE COUPLED TOGETHER
(1) SUPPLIED WITH 74170278 - 1525 988 (FIG.1)
(2) WITHOUT DIFF.LOCK
(3) WITH DIFF.LOCK
(4) WITH 74170278 - 1525 988 (FIG.1)

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
9		2058 790	SCREW M16X55		8
10		1351 962	PLATE		1
11		1903 520	PLUG		2
12		1777 547	O-RING Ø 215,5X3,5X222,5		1
13		1945 911	SHIM 0,10 MM
13		1945 912	SHIM 0,25 MM
13		1945 913	SHIM 0,40 MM
13		1945 914	SHIM 0,50 MM
14	98170369	1777 531	BEARING		1
15		1774 673	CROWN WHEEL/PINION R.2,69	(A)(4)	1
15		1796 905	CROWN WHEEL/PINION R.2,87	(A)(4)	1
15	74171205	1948 859	CROWN WHEEL/PINION 43:14	(B)R.3,07(1)	1
15	74171211	1774 675	CROWN WHEEL/PINION 42:13	(B)R.3,23(1)	1
15	74171214	1774 676	CROWN WHEEL/PINION 41:12	(B)R.3,42(1)	1
15	74171208	1774 677	CROWN WHEEL/PINION 40:11	(B)R.3,64(1)	1
16	98170379	1777 535	BEARING		1
17		804 787	RETAINER RING Ø 45 MM		1
18		2499 005	HOUSING	(2)	1
18		2499 004	HOUSING	(3)	1
19		2165 310	PLUG		1
20		2001 228	SEAL RING		1
21	74171410	1796 906	DRIVE SHAFT	RIGHT	1
21	74171411	1796 908	DRIVE SHAFT	LEFT	1
22		1870 245	GROOVED NUT		1
23	98170035	362 226	BEARING 110X170X38 MM		1
24		1777 540	DIFFERENTIAL HALF HOUSING	(A)	1
24	74171217	1777 543	HALF HOUSING BIG	(B)	1
25	74171222	1777 522	THRUST WASHER		2
26	74171220	1777 556	SIDE GEAR 18 T.-40 SPL.		2
27	74171221	1777 523	DIFF. PINION 11 T.		4
28	74171223	1777 526	THRUST WASHER		4
29	74171218	2412 869	DIFF. SPIDER KIT		1
30	74171266	*****	DIFFERENTIAL GEAR KIT		1
31	74171267	*****	DIFF. CASE COMPLETE		1
32		1777 539	DIFFERENTIAL HALF HOUSING	(A)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
32	74171216	1777 542	HALF HOUSING BIG	(B)	1
33	74171219	2063 310	SCREW TORX M18X1,5X55		18	NSS
34	98170370	1785 751	BEARING		1
35		1777 537	GROOVED NUT		1
36	74171412	1777 557	DIFF.LOCK SLEEVE		1
37		1860 714	SPRING		1
38	74171413	1892 688	FORK		1
39		1855 786	PIN		1
40		804 887	O-RING 22,1X1,6X25,3		1
41		1855 785	PISTON		1
42		804 668	O-RING 39,2X3X45,2		1
43		1784 314	O-RING 47,35X1,78X50,91		1
44		1855 784	CYLINDER		1
45		1855 788	GASKET		1
46		1855 787	COVER		1
47		2193 980	PLATE		1
48		814 821	SCREW M10X25		2
49	95535752	1743 180	SENSOR		1
50		1343 144	JOINT		1
51		2418 522	GROUP DIF.COMPL. R.2,69		1
51		2418 523	GROUP DIF.COMPL. R.2,87		1
51		1908 375	GROUP DIF.COMPL. R.3,07		1
51		2300 436	GROUP DIF.COMPL. R.3,23		1
51		2300 435	GROUP DIF.COMPL. R.3,42		1
51		2300 434	GROUP DIF.COMPL. R.3,64		1
52		2062 847	GASKET		1
