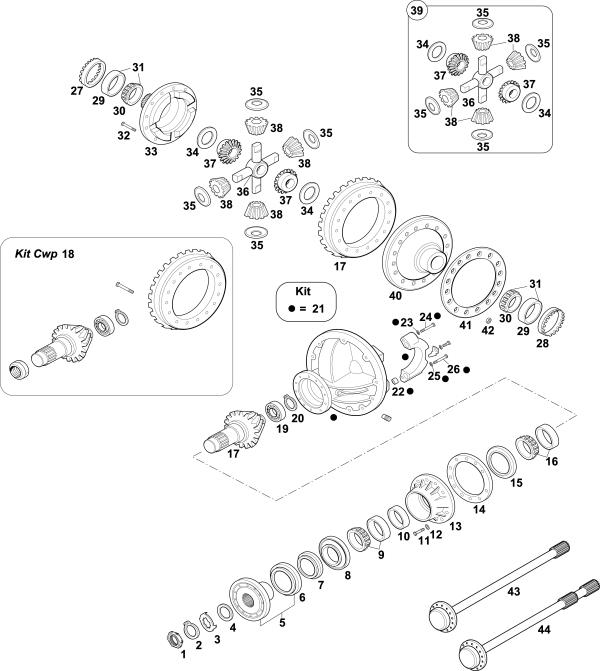

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	88530355	8171334	GROOVED NUT		1
2	95531735	914484	SEEGER RING T.2,50 MM		1
3	88530539	1523318	WASHER		1
3		1523319	WASHER		1
4	88170237	1523317	WASHER T.3,00 MM		1
5	88530286	1524358	OUTPUT FLANGE D.203		1
6		1522298	GUARD		1
7	88170560	3192514	DUST COVER		1
8	88170571	1673701	OIL SEAL 90X145X10/16 MM	(12)	1	ALT
8	88170874	1523239	OIL SEAL 90X145X10/15 MM		1
9	98170174	184671	BEARING 70X140X39 MM		1
10	88170596	1523624	SPACER T.7,76 MM
10	88170597	1523623	SPACER T.7,74 MM
10	88170590	1523237	SPACER T.7,68 MM
10	88170589	1523236	SPACER T.7,66 MM
10	88170588	1523235	SPACER T.7,60 MM
10	88170587	1523234	SPACER T.7,54 MM
10	88170586	1523233	SPACER T.7,48 MM
10	88170585	1523232	SPACER T.7,46 MM
11		994404	SCREW M16X55		12
12	88170005	994896	WASHER 17X30X1,60 MM		12	NSS
13	88170582	1523179	BEARING HOUSING		1
14		1523305	SHIM 0,55 MM
14		1523193	SHIM 0,50 MM
14		1523304	SHIM 0,45 MM
14		1523303	SHIM 0,40 MM
14		1523192	SHIM 0,35 MM
14		1523302	SHIM 0,30 MM
15		383524	OIL PLATE		1
16	98170152	1523666	BEARING 75X160X58 MM		1
17	88170403	20506491	CROWN WHEEL/PINION 39:14	R.2,79(A)	1
17	88170294	1524151	CROWN WHEEL/PINION 31:10	R.3,10(B)	1
17	88170291	1524252	CROWN WHEEL/PINION 31:9	R.3,44(B)	1
17	88170288	1524294	CROWN WHEEL/PINION 33:9	R.3,67(B)(10)	1

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
17	88170416	1523159	CROWN WHEEL/PINION 33:8	R.4,13(B)(10)(13)	1
18	88170401	20551507	KIT CWP 39:14	R.2,79(A)(6)	1	ALT
18	88170384	20551508	KIT CWP 31:10	R.3,10(B)(7)	1	ALT
18	88170812	20551509	KIT CWP 31:9	R.3,44(B)(5)	1	ALT
18	88170811	20551510	KIT CWP 33:9	R.3,67(B)(8)(10)	1	ALT
18		20551511	KIT CWP 33:8	R.4,13(B)(10)	1
19	98170040	81241405	BEARING 45X100X36 MM		1
20	88170413	914470	SNAP RING T.1,75 MM		1	NSS
21	88170583	1069996	DIFF.HOUSING		1
22		310719	BUSH		4
23	88170005	994896	WASHER 17X30X1,60 MM		4	NSS
24		984838	SCREW M16X90		4
25		946304	WASHER 21X36X3 MM		4
26		1673620	SCREW M20X104		4
27		1523737	DIFF.BEARING ADJUSTER	RIGHT	1
28		1523736	DIFF.BEARING ADJUSTER	LEFT	1
29	98170183	181279	CONE 168,275 MM	(11)	2	NSS
30	98170184	181596	BEARING 101,6X41,275 MM	(11)	2	NSS
31	98170182	184637	BEAR. 101,6X168,28X41,28		2
32	88170414	1524673	SCREW	(A)	16	NSS
32	88170524	1524672	SCREW	(B)	16	NSS
33	88170535	1524670	HOUSING RH		1
34	88170298	1523185	THRUST WASHER		2
35	88170299	1523186	THRUST WASHER		4
36	88170321	1523170	SPIDER		1
37	88170319	1523308	SIDE GEAR 18 T. - 23 SPL.		2
38	88170320	1524715	DIFF. PINION 13 T.		4
39	88170300	273958	DIFFERENTIAL GEAR KIT		1
40	88170555	1524577	HOUSING LH	(A)	1
40	88170297	1523436	HOUSING LH	(B)	1
41		1523183	LOCK PLATE		1
42		990972	NUT M16X14,8		16
43	88170207	1673055	DRIVE SHAFT LH L=969 MM	(1)(2)(3)(10)	1
43		1524609	DRIVE SHAFT LH	(1)(2)(4)	1
43	88170235	1673053	DRIVE SHAFT LH L=969 MM	(9)	1

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
44	88170208	1673056	DRIVE S. D.LOCK RH L=1059	(1)(2)(3)(10)	1
44		1524610	DRIVE SHAFT D.LOCK RH	(1)(2)(4)	1
44	88170236	1673054	DRIVE S. D.LOCK RH L=1034	(9)	1

(AB) TO BE COUPLED TOGETHER
(1) 1ST TYPE DRIVE SHAFT - DIFFERENT FROM THE 2ND TYPE FOR THE LENGHT
(2) F10 VERSION
(3) 1ST TYPE DRIVE SHAFT - DIFFERENT FROM THE 2ND TYPE FOR THE LENGHT
(4) 2ND TYPE DRIVE SHAFT - DIFFERENT FROM THE 1ST TYPE FOR THE LENGHT
(5) WE ALTERNATIVELY SUPPLY THE CWP ONLY: 88170291 - 1524252 (FIG.17)
(6) WE ALTERNATIVELY SUPPLY THE CWP ONLY: 88170403 - 20506491 (FIG.17)
(7) WE ALTERNATIVELY SUPPLY THE CWP ONLY: 88170294 - 1524151 (FIG.17)
(8) WE ALTERNATIVELY SUPPLY THE CWP ONLY: 88170288 - 1524294 (FIG.17)
(9) FH VERSION
(10) N10 VERSION
(11) NOT SUPPLIED SEPARATELY, WE SUPPLY: 98170182 - 184637 (FIG.31)
(12) WE SUPPLY THE ALTERNATIVE VERSION: 88170874 - 1523239 (FIG.8)
(13) 88170416 - 1523159 (FIG.17) REPLACED BY 20551511 (FIG.18)
