SchemaEuroricambi

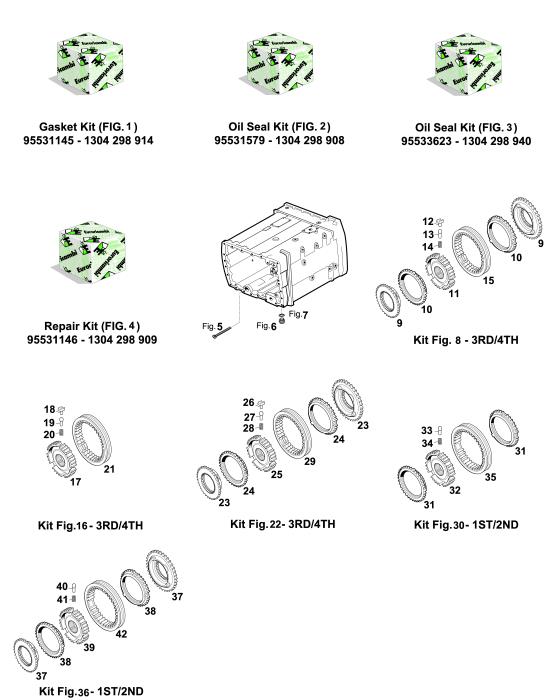

Fig.

Our No.

Part No.

Description

Notes

Q.ty

TP

1

95531145

1304 298 914

GASKET KIT

1

1

95531582

0501 313 379

GASKET

1

NSS

1

95531583

1304 307 437

GASKET

2

1

95531584

1290 301 140

GASKET

1

1

95531585

0501 316 990

GASKET

1

NSS

1

95531586

1304 303 297

GASKET

1

NSS

1

95531587

0750 112 113

GASKET

1

NSS

1

95531588

1304 307 338

GASKET

1

1

95531589

0501 318 308

GASKET

2

1

95531590

1268 307 170

GASKET

2

1

95531591

1304 301 063

GASKET

1

NSS

1

95531592

1304 301 109

GASKET

1

NSS

1

95531593

1238 308 201

GASKET

1

1

95531595

1304 307 277

GASKET

1

NSS

2

95531579

1304 298 908

OIL SEAL KIT

1

2

95531580

0734 310 230

OIL SEAL 55X72X10 MM

1

2

95531581

0750 111 149

OIL SEAL 48X65X10 MM

1

2

95531247

0634 300 302

OIL SEAL 25X35X7 MM

1

2

95531248

0634 307 367

OIL SEAL 25X35X7/10 MM

1

2

95531564

0734 319 439

OIL SEAL 95X115X10 MM

1

3

95533623

1304 298 940

OIL SEAL KIT

(1)

1

3

95532406

0734 310 212

OIL SEAL 105X125X12 MM

2

3

1304 343 100

GASKET

1

4

95531146

1304 298 909

REPAIR KIT

1

4

95531565

0750 112 047

GASKET 22X36X14,5

1

4

95531566

0734 307 296

RING 74X84X5 MM

2

4

95531567

0750 145 003

RING 78X82,7X5,5 MM

1

NSS

4

95531568

0634 801 062

SEAL RING18X24X1,4DIN7603

9

4

95531569

0634 801 044

SEAL RING 16X20X1,3 MM

3

NSS

4

95531570

0634 801 321

WASHER 38X44X1,8 DIN7603

1

NSS

4

95532153

0730 008 057

WASHER 14X19X1,40 MM

1

NSS

4

95531572

0634 801 205

SEAL RING 12X15,5X1,4

1

4

95531573

0634 801 203

SEAL RING 16X22X1,4 MM

2

NSS

4

95531574

0634 801 324

SEAL RING30X36X1,9DIN7603

1

NSS

Last update 03/2022

Fig.

Our No.

Part No.

Description

Notes

Q.ty

TP

4

95532558

0634 801 151

SEAL RING 14X20X1,4 MM

8

NSS

4

95531576

0634 306 169

O-RING 7X1,5

2

NSS

4

95531009

0634 316 057

O-RING 36,2X3

2

4

95531577

0634 313 223

O-RING 59,2X5,7

1

4

95531578

0634 313 232

O-RING 95X2

1

5

95531698

0501 318 802

OIL FILTER

1

6

95532507

0736 305 052

PLUG

1

7

95531570

0634 801 321

WASHER 38X44X1,8 DIN7603

1

NSS

8

95531360

1304 298 971

SYNCHRONIZER KIT 3RD/4TH

1

9

95570354

1304 304 660

SYNCHRONIZER CONE

2

10

95570353

1304 304 014

SYNCHRONIZER RING

2

11

95570488

1304 304 051

SYNCHRONIZER HUB

1

12

95570080

1238 304 394

SLIDING BLOCK

3

13

95570142

1249 304 222

PIN

3

14

95570470

0732 040 409

PRESSURE SPRING

3

15

95570352

6002 305 515

SLIDING SLEEVE

1

16

1304 204 057

SYNCHRONIZER KIT 3RD/4TH

1

17

95570488

1304 304 051

SYNCHRONIZER HUB

1

18

95570080

1238 304 394

SLIDING BLOCK

3

19

95570142

1249 304 222

PIN

3

20

95570470

0732 040 409

PRESSURE SPRING

3

21

95533672

1304 304 666

SLIDING SLEEVE

1

NSS

22

1304 298 972

SYNCHRONIZER KIT 3RD/4TH

1

23

95570354

1304 304 660

SYNCHRONIZER CONE

2

24

95531086

1304 304 683

SYNCHRONIZER RING

2

25

95570488

1304 304 051

SYNCHRONIZER HUB

1

26

95570080

1238 304 394

SLIDING BLOCK

3

27

95570142

1249 304 222

PIN

3

28

95570470

0732 040 409

PRESSURE SPRING

3

29

95533672

1304 304 666

SLIDING SLEEVE

1

NSS

30

95535106

1304 204 051

SYNCHRONIZER KIT 1ST/2ND

1

31

95531087

1304 304 681

SYNCHRONIZER RING

2

32

95570662

1304 304 591

SYNCHRONIZER HUB

1

33

95570574

1297 304 436

SLIDE

3

34

95570470

0732 040 409

PRESSURE SPRING

3

Last update 03/2022

Fig.

Our No.

Part No.

Description

Notes

Q.ty

TP

35

95570351

1304 304 597

SLIDING SLEEVE

1

36

95535108

1304 298 970

SYNCHRONIZER KIT 1ST/2ND

1

37

95570356

1304 304 408

SYNCHRONIZER CONE

2

38

95531087

1304 304 681

SYNCHRONIZER RING

2

39

95570662

1304 304 591

SYNCHRONIZER HUB

1

40

95570574

1297 304 436

SLIDE

3

41

95570470

0732 040 409

PRESSURE SPRING

3

42

95570351

1304 304 597

SLIDING SLEEVE

1

Note

(1) FOR VERSION WITH TELMA RETARDER
