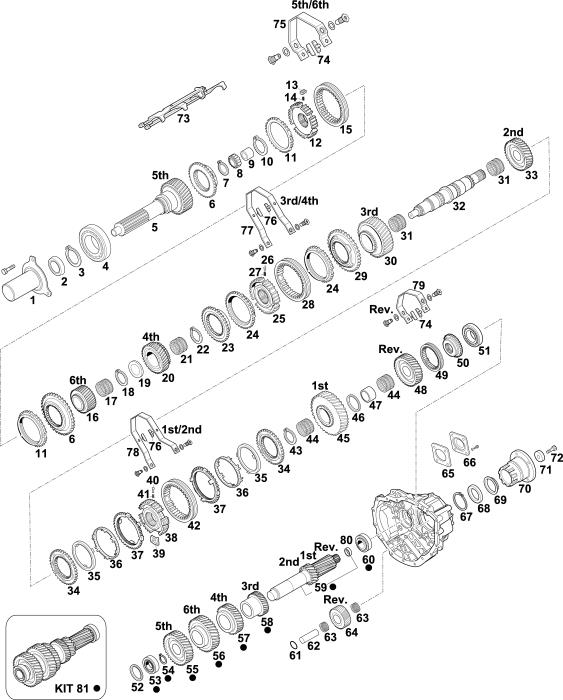

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	95535923	1346 302 078	COVER		1
2	95535578	0734 319 782	OIL SEAL 48X65X7 MM		1
3	60532315	0630 531 076	SEEGER RING T.3,00 MM		1
4	98531877	0735 330 801	BEARING 60X130X31 MM		1
5	95535393	1346 302 046	INPUT SHAFT 21 T.		1
6	95533317	1290 304 482	SYNCHRONIZER CONE		2
7	95531817	0630 513 070	SEEGER RING		1
8	98531878	0735 358 346	NEEDLE BEAR. 30X50X29,8		1
9	95535386	0735 295 223	BUSH 25X30X29 MM		1
10	95531827	0630 531 050	SEEGER RING T.2,50 MM		1
11	95534269	1317 304 150	SYNCHRONIZER RING	(1)	2
11		. 1317 304 150	SYNCHRONIZER RING		2
12	95534791	1346 304 118	SYNCHRONIZER HUB		1
13	95534264	1317 304 081	SLIDING BLOCK		3
14	95532387	0732 042 510	PRESSURE SPRING		3
15	95534962	1333 304 061	SLIDING SLEEVE		1
16	95535320	1346 304 052	GEAR 6TH SPEED 23 T.		1
17	98530300	0735 321 527	NEEDLE BEARING 44X50X45		1
18		0730 300 194	SEEGER RING		1
19		0769 173 627	WASHER		1
20	95535321	1346 304 096	GEAR 4TH SPEED 27 T.		1
21	98530554	0735 321 591	NEEDLE BEARING 62X70X35,8		1
22		0730 300 195	ELASTIC RING		1
23	95535322	1311 302 022	SYNCHRONIZER CONE		1
24	95531091	1311 304 255	SYNCHRONIZER RING		2
25	95535305	1346 304 021	SYNCHRONIZER HUB		1
26	95570574	1297 304 436	SLIDE		3
27	95570470	0732 040 409	PRESSURE SPRING		3
28	95570887	1304 304 664	SLIDING SLEEVE		1
29	95530339	1310 302 023	SYNCHRONIZER CONE 48 T.		1
30	95535327	1346 304 137	GEAR 3RD SPEED 29 T.		1
31	98530503	0750 115 567	NEEDLE BEARING 80X88X41,8		2
32	95535351	1346 304 108	MAIN SHAFT		1
33	95535328	1346 304 123	GEAR 2ND SPEED 34 T.		1

Last update 03/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
34	95535307	1346 304 092	SYNCHRONIZER CONE		2
35	95535308	1346 304 039	SYNCHRONIZER RING		2
36	95534919	1346 304 038	SYNCHRONIZER RING		2
37	95535309	1346 304 033	SYNCHRONIZER RING		2
38	95535310	1346 304 091	SYNCHRONIZER HUB		1
39	95570643	1312 304 159	SLIDING BLOCK		3
40	95570574	1297 304 436	SLIDE		3
41	95570470	0732 040 409	PRESSURE SPRING		3
42	95534353	6002 305 994	SLIDING SLEEVE		1
43		0730 300 991	RETAINER RING 75X4		1
44	98530491	0735 321 529	NEEDLE BEARING 75X83X40 W		2
45	95535329	1346 304 158	GEAR 1ST SPEED 38 T.		1
46	95536208	0501 322 939	WASHER		1
47	95535794	0735 295 239	RING 66X40X75 MM		1
48	95535333	1346 304 172	REVERSE GEAR 35 T.		1
49	95530119	1308 304 087	SLIDING SLEEVE		1
50	95535312	1346 304 177	FOLLOWER RING 25 T.		1
51	98530411	0735 330 799	BEARING 55X120X29 MM		1
52		0730 002 943	SHIM 1,10 MM		1
52		0730 002 942	SHIM 1,20 MM		1
52		0730 002 941	SHIM 1,30 MM		1
52		0730 002 940	SHIM 1,40 MM		1
52	95532086	0730 002 939	SHIM 1,50 MM		1
52	95536170	0730 002 938	SHIM 1,60 MM		1
53	98530553	0735 371 994	BEARING 45X85X32 MM		1
54	95535945	0630 531 067	RETAINER RING T.3,00 MM		1	NSS
55	95535313	1346 303 053	GEAR 5TH SPEED 40 T.		1
56	95535314	1346 303 054	GEAR 6TH SPEED 56 T.		1
57	95535315	1346 303 055	GEAR 4TH SPEED 37 T.		1
58	95535316	1346 303 052	GEAR 3RD SPEED 26 T.	OLD	1
58		1346 303 079	GEAR 3RD SPEED	NEW	1
59	95535348	1346 203 002	COUNTERSHAFT 11/18 T.		1
60	98531880	0735 372 217	BEARING 45X85X24,75 MM		1
61		0630 502 014	RETAINER RING 28X1,2		1
62	95535299	1346 305 039	REVERSE PIN		1

Last update 03/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
63	98531226	0635 300 110	NEEDLE BEARING 28X35X18		2
64	95535334	1346 305 058	REVERSE GEAR 20 T.		1
64		1346 305 044	REVERSE GEAR		1
65	95531593	1238 308 201	GASKET		1
66	95531377	1304 301 034	COVER		1
67		0630 513 158	SEEGER RING		1
68	95532541	0734 319 687	OIL SEAL 80X100X10 MM		1
69		1346 304 024	PROTECTION PLATE		1
70		1346 204 016	OUTPUT FLANGE D.120		1
71		0730 113 920	WASHER		1
72		0636 100 541	SCREW M14X1,5X75		1
73	95536008	0501 217 832	ROD		1
74	95533339	1290 306 423	SLIDING BLOCK		4
75	95536007	0501 222 817	FORK 5TH/6TH		1
76	95570490	1290 306 066	SLIDING BLOCK		4
77	95536006	0501 222 818	FORK 3RD/4TH		1
78	95536004	0501 222 814	FORK 1ST/2ND		1
79	95536157	0501 222 816	REVERSE FORK		1
80	95530099	1250 303 095	RING		1	NSS
81	95535946	*****	COUNTERSHAFT ASSY		1

(1) WE SUPPLY THE ALTERNATIVE VERSION: 95536416 - . 1317 304 150 (FIG.11)
