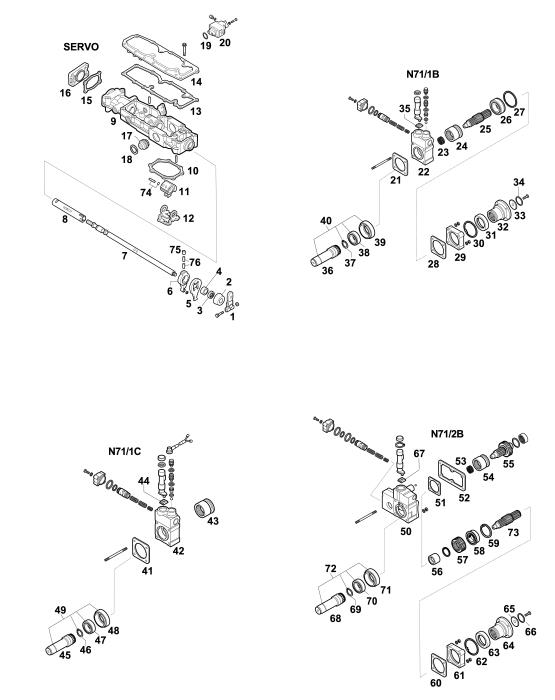

| Fig. |
Our No. |
Part No. |
|
Description |
Notes |
Q.ty |
TP |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| 1 |
95534186 |
1316 307 422 |
|
LEVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 2 |
|
1341 307 104 |
|
COVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 2 |
|
0501 211 962 |
|
COVER |
(#) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 |
95532398 |
0734 309 765 |
|
OIL SEAL 28X42X11 MM |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
| 4 |
95532300 |
0730 260 703 |
|
BUSH |
OLD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 4 |
|
0750 101 191 |
|
BUSH |
NEW |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5 |
95534184 |
1315 307 292 |
|
DRIVER |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
| 6 |
95534240 |
1316 208 002 |
|
DRIVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7 |
95534180 |
1315 307 264 |
|
ROD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7 |
95534194 |
1315 307 327 |
|
ROD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7 |
|
1315 307 371 |
|
ROD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7 |
|
1315 307 356 |
|
ROD |
(*) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7 |
|
1341 307 110 |
|
ROD |
(#) |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 8 |
95534185 |
1315 307 294 |
|
TUBE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 8 |
|
1315 307 326 |
|
TUBE |
(*) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 8 |
95536368 |
1315 307 397 |
|
TUBE |
(#) |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 9 |
|
1315 307 383 |
|
HOUSING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 9 |
|
1341 307 010 |
|
HOUSING |
(#) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 10 |
95534160 |
1315 307 013 |
|
GASKET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 11 |
95534192 |
1315 307 734 |
|
DRIVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 11 |
95535957 |
1315 307 395 |
|
DRIVER |
(#) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 12 |
95534178 |
1315 307 218 |
|
LOCK |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 13 |
95535186 |
0501 324 072 |
|
SHEET GASKET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 13 |
95535190 |
0501 322 265 |
|
SHEET GASKET |
(#) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 14 |
|
1315 307 286 |
|
COVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 14 |
|
1315 307 419 |
|
COVER |
(#) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 15 |
|
1315 307 366 |
|
GASKET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 16 |
|
1315 307 279 |
|
COVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 17 |
95535758 |
0501 318 597 |
|
BRACKET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 18 |
95531855 |
0630 532 130 |
|
RETAINER RING |
|
|
NSS
|
|
|
|
|
|
|
|
|
|
|
|
|
| 19 |
95531935 |
0634 313 505 |
|
O-RING 42X3 |
OLD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 19 |
|
0769 151 008 |
|
O-RING 42X3 |
NEW |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 20 |
95534355 |
6038 202 043 |
|
VALVE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 20 |
95534356 |
6038 202 042 |
|
VALVE |
(*) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Last update 04/2022
| Fig. |
Our No. |
Part No. |
|
Description |
Notes |
Q.ty |
TP |
|
|
|
|
|
|
|
|
|
|
|
|
| 21 |
95531593 |
1238 308 201 |
|
GASKET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 22 |
95532766 |
1240 310 125 |
|
HOUSING P.T.O. |
|
|
NSS
|
|
|
|
|
|
|
|
|
|
|
|
|
| 23 |
98530380 |
0735 320 120 |
|
NEEDLE BEARING 16X22X16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 24 |
95530892 |
1240 317 075 |
|
SLIDING SLEEVE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 25 |
95530013 |
1240 310 013 |
|
SHAFT P.T.O. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 26 |
98530708 |
0635 332 034 |
|
BEARING 40X80X18 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 27 |
|
0630 503 010 |
|
LOCK RING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 28 |
95531593 |
1238 308 201 |
|
GASKET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 29 |
|
1238 309 067 |
|
COVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 30 |
95570130 |
0630 502 039 |
|
RETAINER RING T.2,50 MM |
|
|
NSS
|
|
|
|
|
|
|
|
|
|
|
|
|
| 31 |
95532409 |
0734 319 046 |
|
OIL SEAL 55X80X8 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 32 |
|
1296 213 003 |
|
FLANGE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 33 |
95570120 |
1238 310 015 |
|
WASHER |
|
|
NSS
|
|
|
|
|
|
|
|
|
|
|
|
|
| 34 |
95531907 |
0634 306 234 |
|
O-RING 32X2,5 |
|
|
NSS
|
|
|
|
|
|
|
|
|
|
|
|
|
| 35 |
95570118 |
1238 317 058 |
|
SLIDE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 36 |
95570378 |
1297 203 005 |
|
SHAFT P.T.O. 12 T. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 37 |
95570191 |
0630 531 055 |
|
SEEGER RING T.1,50 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 38 |
98530103 |
0750 116 233 |
|
BEARING 45X75X16 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 39 |
95531058 |
1295 338 083 |
|
BUSH |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 40 |
95570017 |
1295 142 011 |
|
REPAIR KIT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 41 |
95531593 |
1238 308 201 |
|
GASKET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 42 |
95532766 |
1240 310 125 |
|
HOUSING P.T.O. |
|
|
NSS
|
|
|
|
|
|
|
|
|
|
|
|
|
| 43 |
95530892 |
1240 317 075 |
|
SLIDING SLEEVE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 44 |
95570118 |
1238 317 058 |
|
SLIDE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 45 |
95570378 |
1297 203 005 |
|
SHAFT P.T.O. 12 T. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 46 |
95570191 |
0630 531 055 |
|
SEEGER RING T.1,50 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 47 |
98530103 |
0750 116 233 |
|
BEARING 45X75X16 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 48 |
95531058 |
1295 338 083 |
|
BUSH |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 49 |
95570017 |
1295 142 011 |
|
REPAIR KIT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 50 |
|
1240 217 091 |
|
HOUSING P.T.O. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 51 |
95531593 |
1238 308 201 |
|
GASKET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 52 |
|
1313 317 001 |
|
GASKET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 53 |
98530380 |
0735 320 120 |
|
NEEDLE BEARING 16X22X16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 54 |
95530892 |
1240 317 075 |
|
SLIDING SLEEVE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 55 |
|
1240 317 004 |
|
SHAFT P.T.O. 29 T. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Last update 04/2022
| Fig. |
Our No. |
Part No. |
|
Description |
Notes |
Q.ty |
TP |
|
|
|
|
|
|
|
|
|
|
|
|
| 56 |
|
0635 303 108 |
|
BUSH |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 57 |
|
1238 317 016 |
|
TRANSFER GEAR PTO 22 T. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 58 |
98530708 |
0635 332 034 |
|
BEARING 40X80X18 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 59 |
|
0630 503 010 |
|
LOCK RING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 60 |
95531593 |
1238 308 201 |
|
GASKET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 61 |
|
1238 309 067 |
|
COVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 62 |
95570130 |
0630 502 039 |
|
RETAINER RING T.2,50 MM |
|
|
NSS
|
|
|
|
|
|
|
|
|
|
|
|
|
| 63 |
95532409 |
0734 319 046 |
|
OIL SEAL 55X80X8 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 64 |
|
1296 213 003 |
|
FLANGE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 65 |
95570120 |
1238 310 015 |
|
WASHER |
|
|
NSS
|
|
|
|
|
|
|
|
|
|
|
|
|
| 66 |
95531907 |
0634 306 234 |
|
O-RING 32X2,5 |
|
|
NSS
|
|
|
|
|
|
|
|
|
|
|
|
|
| 67 |
95570118 |
1238 317 058 |
|
SLIDE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 68 |
95570378 |
1297 203 005 |
|
SHAFT P.T.O. 12 T. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 69 |
95570191 |
0630 531 055 |
|
SEEGER RING T.1,50 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 70 |
98530103 |
0750 116 233 |
|
BEARING 45X75X16 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 71 |
95531058 |
1295 338 083 |
|
BUSH |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 72 |
95570017 |
1295 142 011 |
|
REPAIR KIT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 73 |
|
1204 317 015 |
|
SHAFT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 74 |
95536136 |
1316 208 003 |
|
PIN SET |
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 75 |
98530570 |
0635 303 019 |
|
BEARING 10X14X15 MM |
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 76 |
95536134 |
0731 201 732 |
|
PIN D.10X24 |
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
(#) TO BE COUPLED TOGETHER
(*) TO BE COUPLED TOGETHER
