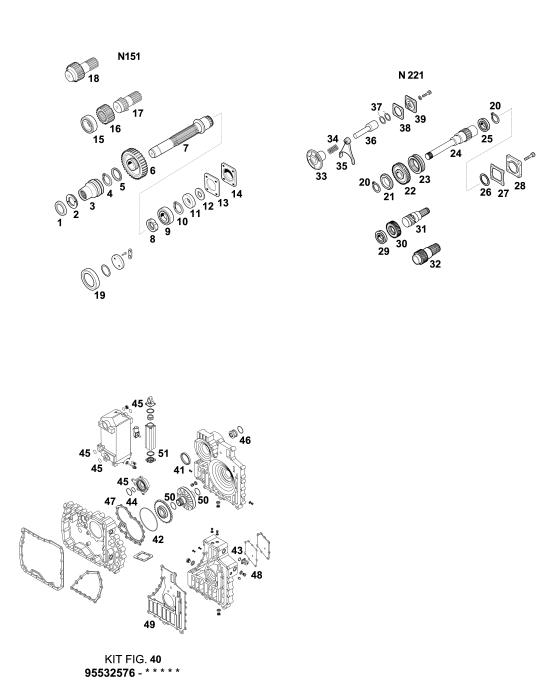

Fig.	Our No.	Part No.		Description	Notes	Q.ty	TP
1	95533508	1296 313 131		RING			NSS
2		0730 104 627		RING
3		1296 313 238		SLEEVE
4		0630 531 133		LOCK RING
5		0730 104 628		WASHER
6		1296 313 082		GEAR 33 T.	(A)
6		1296 313 083		GEAR 36 T.	(B)
6		1296 313 084		GEAR 38 T.	(C)
6		1296 313 085		GEAR 39 T.	(D)
6		1296 313 086		GEAR 46 T.	(E)
7	95531016	1296 213 028		SHAFT P.T.O. 12/18 T.
8		1296 313 125		RING
9	98530810	0735 410 139		BEARING 40X80X23 MM
10		0630 531 314		SEEGER RING T.2,40 MM
10		0630 531 315		SEEGER RING T.2,30 MM
10		0630 501 135		SEEGER RING T.2,10 MM
10		0630 531 049		SEEGER RING T.2,00 MM
11		7429 032 102		RING
12		1232 304 056		SHIM 1,60 MM
12		1232 304 054		SHIM 1,40 MM
12		1232 304 066		SHIM 1,20 MM
12		1232 304 062		SHIM 1,00 MM
13	95531691	0501 315 727		GASKET			NSS
14		1250 313 190		COVER
15		0635 416 308		BEARING
16		1296 313 007		GEAR 27 T.	(A)
16		1296 313 008		GEAR 24 T.	(B)
17		1296 313 019		SHAFT	(AB)
18		1296 313 003		SHAFT 22 T.	(C)
18		1296 313 004		SHAFT 21 T.	(D)
18		1296 313 005		SHAFT 22 T.	(E)
19	95532542	0750 111 341		OIL SEAL 105X130X12 MM	(1)
19	95535926	. 0750 111 341		OIL SEAL 105X130X12 MM	(2)
20		0730 501 275		SEEGER RING T.2,40 MM

Last update 04/2022

Fig.

Our No.

Part No.

Description

Notes

Q.ty

TP

20

0730 501 372

SEEGER RING T.2,20 MM

21

0730 101 140

WASHER T.11,60 MM

22

95534143

6091 202 025

GEAR 37 T.

(F)

22

95534142

6091 202 024

GEAR 40 T.

(G)

22

95534141

6091 202 023

GEAR 44 T.

(H)

22

1315 213 003

GEAR 46 T.

(L)

23

95534050

1311 313 017

SLIDING SLEEVE

24

95534144

1315 213 012

SHAFT P.T.O.

25

98530810

0735 410 139

BEARING 40X80X23 MM

26

0730 062 547

SPACER T.4,40 MM

26

0730 060 893

SPACER T.3,60 MM

27

95531691

0501 315 727

GASKET

NSS

28

1250 313 190

COVER

29

98530341

0635 373 021

BEARING 45X85X24,75 MM

30

95534211

1315 313 029

GEAR 30 T.

(F)

30

95534210

1315 313 028

GEAR 27 T.

(G)

31

95534213

1315 313 038

SHAFT P.T.O.

(FG)

32

1315 313 025

OUTPUT SHAFT 23 T.

(H)

32

1315 313 024

SHAFT 21 T.

(L)

33

1315 313 077

COVER

34

0732 041 323

PRESSURE SPRING

35

95534212

6091 306 015

FORK

36

1315 313 048

PISTON

37

95531947

0634 316 248

O-RING 40X3

NSS

38

95531692

0501 315 728

GASKET

39

1315 313 049

COVER

40

95532576

*****

REPAIR KIT

1

41

95532566

0734 319 459

OIL SEAL 105X125X12/9,5MM

1

42

95532569

0634 314 438

O-RING 240X3

1

43

95532572

0634 313 017

O-RING 27X3

1

44

95532571

0634 313 568

O-RING 63X3

1

45

95532570

0634 313 056

O-RING 37X3

4

46

95532575

0634 316 159

O-RING 7X2

1

NSS

47

95532565

0501 315 048

SHEET GASKET

1

48

95532567

0501 313 642

SHEET GASKET

1

Last update 04/2022

Fig.

Our No.

Part No.

Description

Notes

Q.ty

TP

49

95532573

0501 314 434

SHEET GASKET

1

50

95532568

0734 401 251

SEAL RING 65,1X70X3,5 MM

2

51

95532574

0634 316 510

O-RING 80X3

2

Note

(ABCDE) TO BE COUPLED TOGETHER
(FGHL) TO BE COUPLED TOGETHER
(1) AFTERMARKET VERSION
(2) PREMIUM BRAND
