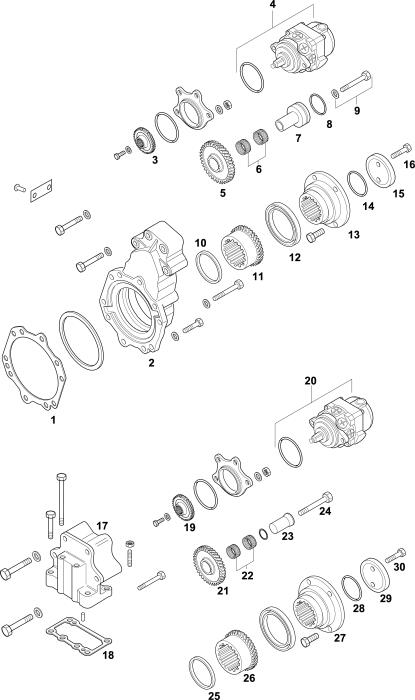

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	95535188	0501 331 906	SHEET GASKET		1
2		6091 315 008	HOUSING	OLD	1
2		0769 175 802	HOUSING	NEW	1
3	95536615	1304 313 068	GEAR 46 T.	A	1
3		1295 338 124	GEAR 46 T.	B	1
4		0501 223 149	OIL PUMP ASSY	A	1
4		8605 955 126	OIL PUMP ASSY	B	1
5	95536612	1315 315 010	INTERMEDIATE GEAR 67 T.		1
6	98530741	0750 115 393	NEEDLE BEARING 20X26X13		2
7		6091 315 002	BUSH		1
8	95535550	0634 306 235	O-RING 32X3		1	NSS
9		0636 015 684	SCREW M10X85		1
10		0730 300 198	WASHER T.5,20 MM		1
11	95536613	1315 315 004	GEAR 85 T.		1
12	95535684	0734 300 421	OIL SEAL 105X125X12/16 MM	OLD	1
12	95536270	0769 174 312	OIL SEAL 105X125X12/16 MM	NEW(3)	1	ALT
13		1327 332 007	OUTPUT FLANGE		1
14	95531938	0634 313 805	O-RING 82X4		1
14	95536262	0769 151 011	O-RING 82X4	(1)	1	ALT
15	95534088	1312 332 028	WASHER		1
16	95532012	0636 011 777	SCREW M12X1,75X60		2
17		1315 315 001	HOUSING		1
18		1315 315 012	GASKET		1
19	95536615	1304 313 068	GEAR 46 T.		1
20		0501 223 149	OIL PUMP ASSY		1
21	95536612	1315 315 010	INTERMEDIATE GEAR 67 T.		1
22	98530741	0750 115 393	NEEDLE BEARING 20X26X13		2
23		6091 215 018	SHAFT		1
24		0736 300 127	SCREW M10X80		1
25		0730 300 198	WASHER T.5,20 MM		1
26	95536613	1315 315 004	GEAR 85 T.		1
27		1327 332 007	OUTPUT FLANGE		1
28	95531938	0634 313 805	O-RING 82X4		1
28	95536262	0769 151 011	O-RING 82X4	(2)	1	ALT

Last update 04/2022

Fig.

Our No.

Part No.

Description

Notes

Q.ty

95534088

1312 332 028

WASHER

95532012

0636 011 777

SCREW M12X1,75X60

(AB) TO BE COUPLED TOGETHER
(1) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE: 95531938 - 0634 313 805 (FIG.14)
(2) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE: 95531938 - 0634 313 805 (FIG.28)
(3) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE : 95535684 - 0734 300 421 (FIG.12)
