(ABCDEFGHIJ) FOR 1ST COLUMN TO BE COUPLED TOGETHER
(KLMNOPQRST) FOR 2ND COLUMN TO BE COUPLED TOGETHER
(UV) TO BE COUPLED TOGETHER
(1) NOT SUPPLIED SEPARATELY, WE SUPPLY: 95535860 - 1358 232 012 (FIG.140)
(2) WE SUPPLY THE ALTERNATIVE VERSION: 95535403 - 1328 268 012 (FIG.15)
(4) REPLACED BY 1 PC 95535862 - 1358 332 245 (FIG.69) + 1 PC 95534770 - 0730 302 523 (FIG.66)
(5) NOT SUPPLIED SEPARATELY, WE SUPPLY: 95536410 - 1358 232 015 (FIG.140)
(6) COMPONENT OF 95536105 - ***** (FIG.141)
(7) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE: 98530433 - 0735 321 487 (FIG.38)
(8) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE: 98530433 - 0735 321 487 (FIG.43)
(9) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE: 95531938 - 0634 313 805 (FIG.106)
(10) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE: 95535684 - 0734 300 421 (FIG.104)
(11) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE: 95534862 - 1358 232 013 (FIG.91)
(12) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE:95531377 - 1304 301 034 (FIG.100)
(13) OEM GENUINE PART
(14) TO BE USED WITH HELICAL GEAR 95536364 - 6085 301 033 ILLUSTRATED IN THE TABLE OF INTARDER

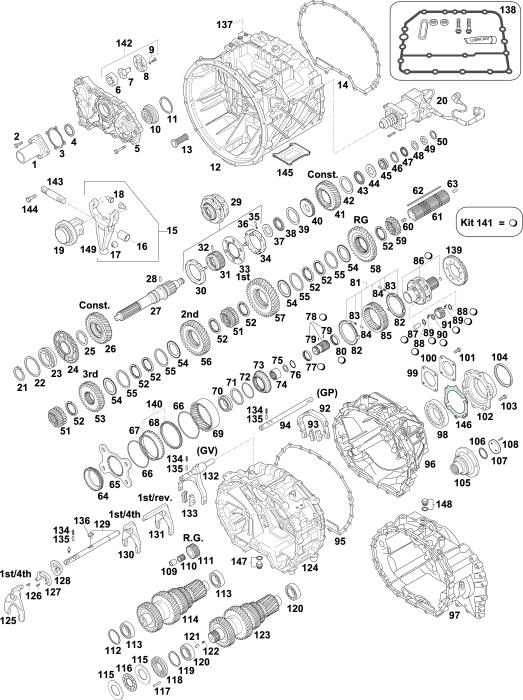

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	95534825	1328 302 202	COVER		1
2		0636 016 401	SCREW M8X25		4
3	95535014	0501 321 451	SHEET GASKET		1
4	95534824	0734 319 847	OIL SEAL 55X70X8 MM		1
5	95535630	1328 302 096	FRONT COVER		1
6	95530070	1315 303 027	ROTOR		1
7	95531143	1314 202 039	OIL PUMP SHAFT		1
8	95535434	1328 302 203	PUMP COVER		1
9		0736 101 051	SCREW M6X25		3
10	95536177	1328 202 024	PISTON		1
11	95534806	0501 326 576	RING 71,7X6,5		1	NSS
12		0769 171 818	CLUTCH BELL HOUSING		1
12		0769 171 818	CLUTCH BELL HOUSING	KLNOPST	1
12	95536676	0769 171 797	CLUTCH BELL HOUSING	MQ	1
12	95535458	0769 171 964	CLUTCH BELL HOUSING	R	1
13	95531698	0501 318 802	OIL FILTER		1
14	95534811	0501 324 367	SHEET GASKET		1
15	95535281	1328 268 013	RELEASE FORK	U(2)	1	ALT
15	95535403	1328 268 012	RELEASE FORK	V	1
16	95535768	0501 332 745	BUSH	U	1
16	95535766	0501 323 199	BUSH	V	1	NSS
17	95535430	0501 331 258	CUP		1
18	60520114	0501 214 560	PIN		2	NSS
19	95535286	0501 220 625	RELEASE DEVICE	BCEGHJ	1
19	95535286	0501 220 625	RELEASE DEVICE	LMOPQRST	1
20		0501 219 051	CLUTCH ACTUATOR	ABCDEGHJ	1
20		0501 219 051	CLUTCH ACTUATOR	LMOPQRST	1
21		0730 501 360	SEEGER RING T.4,00 MM		1
21		0730 501 359	SEEGER RING T.3,95 MM		1
21		0730 501 358	SEEGER RING T.3,90 MM		1
21		0730 501 357	SEEGER RING T.3,85 MM		1
21		0730 501 356	SEEGER RING T.3,80 MM		1
21		0730 501 355	SEEGER RING T.3,75 MM		1
21		0730 501 597	SEEGER RING T.3,65 MM		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
21		0730 501 596	SEEGER RING T.3,60 MM		1
21		0730 501 595	SEEGER RING T.3,55 MM		1
21		0730 501 594	SEEGER RING T.3,50 MM		1
21		0730 501 593	SEEGER RING T.3,45 MM		1
21		0730 501 592	SEEGER RING T.3,40 MM		1
21		0730 501 591	SEEGER RING T.3,35 MM		1
21		0730 501 590	SEEGER RING T.3,30 MM		1
21		0730 501 589	SEEGER RING T.3,25 MM		1
21		0769 144 243	SEEGER RING T.3,25-4,0 MM		1
22		0730 008 532	SHIM 2,00 MM		1
22		0730 008 531	SHIM 1,95 MM		1
22		0730 008 530	SHIM 1,90 MM		1
22		0730 008 529	SHIM 1,85 MM		1
22		0730 008 528	SHIM 1,80 MM		1
22		0730 008 527	SHIM 1,75 MM		1
22		0730 008 526	SHIM 1,70 MM		1
22		0730 008 525	SHIM 1,65 MM		1
22		0730 008 524	SHIM 1,60 MM		1
22		0730 008 523	SHIM 1,55 MM		1
22		0730 008 522	SHIM 1,50 MM		1
22		0730 008 521	SHIM 1,45 MM		1
22		0730 008 520	SHIM 1,40 MM		1
22		0769 143 439	SHIM 1,40-2,00 MM		1
23	98530432	0750 116 365	BEARING 65X120X23 MM		1
24	95534814	1328 302 024	DISK		1
25	95534815	0730 110 392	SHIM 6,00 MM		1
26	95535050	1328 302 062	CONSTANT GEAR 32 T.	ABIJKLMNOT	1
26	95535431	1328 302 063	CONSTANT GEAR 40 T.	CDEFGHPQRS	1
27	95535295	1328 302 077	INPUT SHAFT	ADFIKNR	1
27		1328 302 079	INPUT SHAFT	BJLS	1
27		1328 302 082	INPUT SHAFT	C	1
27	95536690	1328 302 080	INPUT SHAFT	E	1
27	95534766	1328 302 078	INPUT SHAFT	GHMOPQT	1
28	95534750	1328 302 072	SLIDING BLOCK		1
29	95534746	1328 298 002	SYNCHRONIZER KIT	ABIJKLMNOT	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
29	95534752	1328 298 001	SYNCHRONIZER KIT	CDEFGHPQRS	1
30	95534792	1328 202 046	SYNCHRONIZER RING	ABIJKLMNOT	1
30	95534792	1328 202 046	SYNCHRONIZER RING	CDEFGHPQRS	1
31	95534749	1328 302 064	SLIDING SLEEVE		1
32	95534750	1328 302 072	SLIDING BLOCK		1
33	95534751	1328 302 132	ROTATE PLATE		1
34	95534748	1328 202 047	SYNCHRONIZER RING	ABIJKLMNOT	1
34	95534793	1328 202 048	SYNCHRONIZER RING	CDEFGHPQRS	1
35	95534747	0635 470 046	ROLLER		3
36	95530270	0732 040 385	SPRING		3
37	95534816	0730 111 066	WASHER		1
38	98530433	0735 321 487	AXIAL NEEDLE B. 43X73X8	OLD	1
38	98530749	0735 301 274	AXIAL NEEDLE B. 43X73X8	NEW(7)	1	ALT
39	95534817	0730 513 973	ELASTIC RING T.2,50 MM		1
40	95534818	1328 302 061	FOLLOWER RING	ACDEFGHI	1
40	95534818	1328 302 061	FOLLOWER RING	KMNOPQR	1
40		1328 302 128	FOLLOWER RING	BJLST	1
41	95535033	1328 304 044	CONSTANT GEAR 34 T.		1
42		0730 514 011	ELASTIC RING T.2,80 MM		1
42		0730 514 010	ELASTIC RING T.2,75 MM		1
42		0730 514 009	ELASTIC RING T.2,70 MM		1
42		0730 514 008	ELASTIC RING T.2,65 MM		1
42		0730 514 007	ELASTIC RING T.2,60 MM		1
42		0730 514 006	ELASTIC RING T.2,55 MM		1
42		0769 144 298	ELASTIC RING T.2,5-2,8 MM		1
43	98530433	0735 321 487	AXIAL NEEDLE B. 43X73X8	OLD	1
43	98530749	0735 301 274	AXIAL NEEDLE B. 43X73X8	NEW(8)	1	ALT
44	95534816	0730 111 066	WASHER	ACDEFGHI	1
44	95534816	0730 111 066	WASHER	KMNOPQR	1
44		0730 112 709	WASHER	BJLST	1
45	95534820	1328 302 075	THRUST RING		1
46	95534821	0730 513 641	RETAINER RING T.2,00 MM		1
47	98530434	0735 301 881	AXIAL NEEDLE B. 30X52X7,5		1
48	95534822	0730 109 641	WASHER T.5,00 MM		1
49	95536734	1328 202 038	SPLIT RING		1	NSS

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
50	95535436	0730 063 258	LOCK RING T.5,90 MM		1
51	95534762	1328 304 064	SLIDING SLEEVE		2
52	95534773	1314 304 008	SHIM 7,00 MM		8
53	95535840	1328 304 059	GEAR 3RD SPEED 42 T.		1
54	95534840	1314 304 119	FOLLOWER RING		4
55		0730 514 006	ELASTIC RING T.2,55 MM		4
55		0730 514 007	ELASTIC RING T.2,60 MM		4
55		0730 514 008	ELASTIC RING T.2,65 MM		4
55		0730 514 009	ELASTIC RING T.2,70 MM		4
56	95535432	1328 304 018	GEAR 2ND SPEED 48 T.		1
57	95532579	1328 304 060	GEAR 1ST SPEED 54 T.		1
58	95534767	1328 304 067	REVERSE GEAR 50 T.		1
59	95535788	1314 304 139	SLIDING SLEEVE		1
60	95534841	1314 304 097	OIL TUBE		1
61	95535433	1328 304 063	MAIN SHAFT		1
62	95534842	1328 304 035	KEY		1
63	95534843	1314 332 043	OIL TUBE		1
64	95534858	1328 333 010	SYNCHRONIZER CONE		1
65	95534804	1328 333 006	FLANGE		1
66	95534770	0730 302 523	RETAINER RING		2
67	95535861	1358 332 221	CROWN SUPPORT 82 T.	OLD(1)	1	NSS
67	95536411	1358 332 252	CROWN SUPPORT 82 T.	NEW(5)	1	NSS
68	95534769	1358 332 222	FOLLOWER RING 82 T.		1	NSS
69	95535863	1358 332 206	OUTSIDE GEAR 82 T.	(4)	1	SOS
69	95535862	1358 332 245	OUTSIDE GEAR 82 T.		1
70	98530437	0750 118 284	BEARING 100X130X30 MM		1
71		0630 513 139	ELASTIC RING		1
72	95534854	0730 513 745	ELASTIC RING T.2,50 MM		1
73	95534763	1328 333 009	SYNCHRONIZER CONE		1
74	95534855	1358 304 247	SLIDING CLUTCH		1
75		0730 004 643	SHIM 3,30 MM		1
75		0730 004 641	SHIM 3,20 MM		1
75		0730 004 639	SHIM 3,10 MM		1
75		0730 004 637	SHIM 3,00 MM		1
75		0730 004 635	SHIM 2,90 MM		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
75		0730 004 633	SHIM 2,80 MM		1
75		0730 004 631	SHIM 2,70 MM		1
75		0730 004 629	SHIM 2,60 MM		1
75		0730 003 914	SHIM 2,50 MM		1
75		0730 003 912	SHIM 2,40 MM		1
75		0730 003 910	SHIM 2,30 MM		1
75		0730 003 908	SHIM 2,20 MM		1
75		0730 003 906	SHIM 2,10 MM		1
75		0730 003 904	SHIM 2,00 MM		1
75		0730 003 902	SHIM 1,90 MM		1
75		0730 003 900	SHIM 1,80 MM		1
75		0730 003 898	SHIM 1,70 MM		1
75		0730 003 896	SHIM 1,60 MM		1
75		0730 003 894	SHIM 1,50 MM		1
75		0730 003 892	SHIM 1,40 MM		1
75		0730 003 890	SHIM 1,30 MM		1
75		0730 003 888	SHIM 1,20 MM		1
75		0730 003 886	SHIM 1,10 MM		1
75		0730 003 884	SHIM 1,00 MM		1
76		0730 303 670	SEEGER RING 64X2 MM		1
77	95535284	1358 332 223	FOLLOWER RING 23 T.		1
78	95535906	1358 332 244	SUN GEAR 23 T.	OLD(6)	1
78	95536391	1358 332 247	SUN GEAR 23 T.	NEW	1
79	95535905	1358 332 015	PIN		2	NSS
80	95535284	1358 332 223	FOLLOWER RING 23 T.		1
81	95534869	1328 233 001	SYNCHRONIZER KIT		1
82	95534426	1328 333 005	SYNCHRONIZER RING	OLD	2
82		0769 175 529	SYNCHRONIZER RING	NEW	2
83	95530675	0732 040 929	PRESSURE SPRING		6
84	95534425	0730 162 804	ELASTIC BUSH	(13)	6
85	95536272	1358 333 020	SLIDING SLEEVE		1
86	95536106	1358 232 202	PLANET CARRIER EMPTY	OLD(6)	1
86		0769 174 171	PLANET CARRIER EMPTY	NEW	1
86		0769 175 836	PLANET CARRIER EMPTY		1
87	95536377	1358 332 261	PIN		5

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
88	95532270	0730 109 323	WASHER T.2,30 MM		10
89	95570722	0750 119 160	NEEDLE D.10X16,8		140
90	95534861	0730 109 640	SHIM 9,00 MM	(6)	5
90	95532270	0730 109 323	WASHER T.2,30 MM		20
90	95532270	0730 109 323	WASHER T.2,30 MM		20
91	95534862	1358 232 013	GEAR SET 28 T. (5 PCS)	OLD(6)	1
91	95536624	1358 232 016	GEAR SET 28 T. (5 PCS)	NEW(11)	1
91	95536624	1358 232 016	GEAR SET 28 T. (5 PCS)	NEW(11)	1
92	95534868	1328 334 017	FORK		1
93	95534507	1328 334 004	SLIDING BLOCK		2
94		1328 334 018	ROD		1
95	95535013	0501 324 368	SHEET GASKET		1
96	95536307	1328 201 033	GP HOUSING		1
97	95536308	6085 201 088	GP HOUSING		1
98	98530050	0750 116 394	BEARING 90X160X30 MM		1
99	95531593	1238 308 201	GASKET		1
100	95531377	1304 301 034	COVER	OLD	1
100	95535605	1328 301 170	COVER	NEW(12)	1	ALT
101		0636 016 406	SCREW M12X25		4
102	95535356	1328 331 004	COVER	(1)	1
103		0636 100 413	SCREW M10X40	(1)	1
104	95535684	0734 300 421	OIL SEAL 105X125X12/16 MM	OLD(1)	1
104	95536270	0769 174 312	OIL SEAL 105X125X12/16 MM	NEW(1)(10)	1	ALT
105	95534866	1358 332 210	OUTPUT FLANGE	ABCEFGJ	1
105	95534866	1358 332 210	OUTPUT FLANGE	KLMPQRST	1
105		1327 332 007	OUTPUT FLANGE	DHINO	1
106	95531938	0634 313 805	O-RING 82X4	(1)	1
106	95536262	0769 151 011	O-RING 82X4	(1)(9)	1	ALT
107	95534088	1312 332 028	WASHER	(1)	1
108	95532012	0636 011 777	SCREW M12X1,75X60	(1)	2
109	95534844	1328 305 007	REVERSE SHAFT		1
110	98530436	0735 301 275	NEEDLE BEARING 40X48X40		1
111	95534845	1328 305 015	REVERSE GEAR 29 T.		1
112		0730 008 303	SHIM 2,80 MM		1
112		0730 008 302	SHIM 2,75 MM		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
119		0730 008 294	SHIM 2,40 MM		1
119		0730 008 293	SHIM 2,35 MM		1
119		0730 008 292	SHIM 2,30 MM		1
119		0730 007 787	SHIM 2,25 MM		1
119		0730 007 786	SHIM 2,20 MM		1
119		0730 007 785	SHIM 2,15 MM		1
119		0730 007 784	SHIM 2,10 MM		1
119		0730 007 783	SHIM 2,05 MM		1
119		0730 008 154	SHIM 1,95 MM		1
119		0730 008 053	SHIM 1,90 MM		1
119		0730 005 817	SHIM 1,85 MM		1
119		0730 008 052	SHIM 1,80 MM		1
119		0730 005 816	SHIM 1,75 MM		1
119		0730 008 051	SHIM 1,70 MM		1
120	98530664	0750 118 992	BEARING 50X90X28 MM		2
121	95534830	0731 208 242	PIN		1
122	95534831	0732 042 766	SPRING		1
123	95535380	1328 203 056	COUNTERS.19/25/32/37/42T.	ABIJKLMNOT	1
123	95535373	1328 203 053	COUNTERS.19/25/32/37/36T.	CDEFGHPQRS	1
124		1328 301 163	GEARBOX HOUSING		1
125	95534846	1328 306 026	FORK		1
126		0631 329 120	PIN 6X18		2
127		1328 306 021	SPACER		1
128		1328 306 034	LOCK		1
129	95535357	1328 206 006	DRIVE SHAFT		1
130	95534846	1328 306 026	FORK		1
131		1328 306 033	REVERSE YOKE		1
132	95536326	1328 212 002	GV FORK		1
133	95534851	1328 312 005	SLIDING BLOCK		2
134	95534831	0732 042 766	SPRING		3
135	95534830	0731 208 242	PIN		3
136	95536342	1328 306 027	SLIDE		1	NSS
137	95534641	0501 316 322	GASKET		1
138	95534760	0501 323 922	GASKET KIT		1
139	95536178	6085 301 217	RETARDER GEAR 57 T.	(14)	1
