SchemaEuroricambi

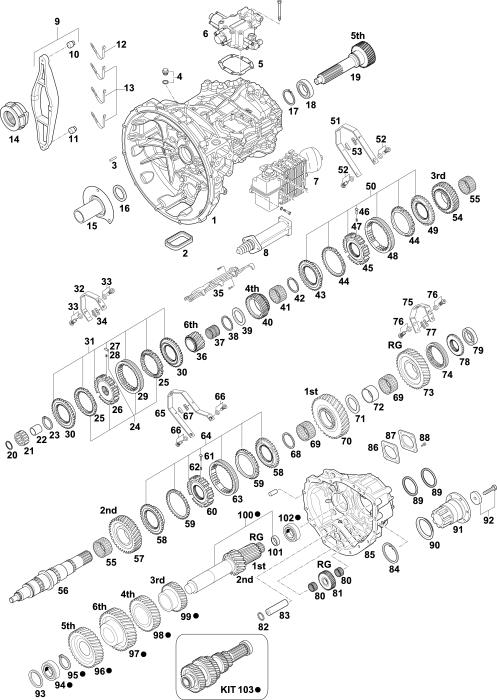

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1		1346 201 074	GEARBOX HOUSING		1
2		1315 301 230	PROTECTION CAP		1
3	95536716	6060 368 076	BALL PIN		1
4		0501 329 726	SENSOR		1
5	95535976	1346 307 016	GASKET		1
6		6070 302 029	TRANSM.ACTUATOR		1
7		0501 336 191	CONTROL ACTUATOR		1
8		0501 337 664	CLUTCH ACTUATOR		1
9		6060 268 030	RELEASE FORK		1
10		0501 324 061	BALL CUP		1
11		0501 330 690	BALL CUP		1
12		0769 186 315	CABLE CLIP		1
13		0659 160 033	CABLE CLIP		3
14		0501 007 693	RELEASE DEVICE		1
15	95535923	1346 302 078	COVER		1
16	95535578	0734 319 782	OIL SEAL 48X65X7 MM		1
17	60532315	0630 531 076	SEEGER RING T.3,00 MM	OLD	1
17		0730 300 194	SEEGER RING	NEW	1
18		0735 301 005	BEARING 60X130X31 MM		1
19		1346 302 109	INPUT SHAFT		1
20		0630 513 031	SEEGER RING		1
21		0735 300 559	NEEDLE BEAR. 40X56X29,8		1
22		0735 300 560	RING 30X40X32,5 MM		1
23	95531827	0630 531 050	SEEGER RING T.2,50 MM		1
24	95535387	1346 204 004	SYNCHRONIZER KIT 5TH/6TH		1
25	95534269	1317 304 150	SYNCHRONIZER RING	(3)	2
25	95536416	1317 304 171	SYNCHRONIZER RING		2
26	95534791	1346 304 118	SYNCHRONIZER HUB		1
27	95534264	1317 304 081	SLIDING BLOCK		3
28	95532387	0732 042 510	PRESSURE SPRING		3
29	95534962	1333 304 061	SLIDING SLEEVE		1
30	95534961	1346 304 047	SYNCHRONIZER CONE		2
31	95535349	1346 298 005	SYNCHRONIZER KIT 5TH/6TH		1
32	95536007	0501 222 817	FORK 5TH/6TH		1

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
33	95536158	0769 150 206	SCREW M18X1,5		2
34	95533339	1290 306 423	SLIDING BLOCK		2
35	95536008	0501 217 832	ROD		1
36	95535350	1346 304 048	GEAR 6TH SPEED 23 T.		1
37	98530501	0750 115 565	NEEDLE BEARING 50X56X53,8		1
38		0730 300 992	ELASTIC RING 70X4		1
39	95536665	0501 323 702	WASHER		1
40	95535324	1346 304 099	GEAR 4TH SPEED 27 T.		1
41	98530502	0750 115 566	NEEDLE BEARING 72X80X35,8		1
42		0730 302 358	ELASTIC RING 72X4		1
43	95535323	1346 304 093	SYNCHRONIZER CONE		1
44	95531073	1268 304 594	SYNCHRONIZER RING		2
45	95535302	1346 304 025	SYNCHRONIZER HUB		1
46	95570574	1297 304 436	SLIDE		3
47	95570470	0732 040 409	PRESSURE SPRING		3
48	95533964	1310 304 195	SLIDING SLEEVE		1
49	95535038	1346 304 094	SYNCHRONIZER CONE		1
50	95535301	1346 298 004	SYNCHRONIZER KIT 3RD/4TH		1
51	95536005	0501 222 820	FORK 3RD/4TH		1
52	95536158	0769 150 206	SCREW M18X1,5		2
53	95570490	1290 306 066	SLIDING BLOCK		2
54	95535290	1346 304 136	GEAR 3RD SPEED 29 T.		1
55	98530503	0750 115 567	NEEDLE BEARING 80X88X41,8		2
56	95535325	1346 304 107	MAIN SHAFT		1
57	95535303	1346 304 054	GEAR 2ND SPEED 34 T.		1
58	95535038	1346 304 094	SYNCHRONIZER CONE		2
59	95531073	1268 304 594	SYNCHRONIZER RING		2
60	95535287	1346 304 026	SYNCHRONIZER HUB		1
61	95570574	1297 304 436	SLIDE		3
62	95570470	0732 040 409	PRESSURE SPRING		3
63	95530983	1290 304 383	SLIDING SLEEVE		1
64	95535370	1346 298 003	SYNCHRONIZER KIT 1ST/2ND		1
65	95536004	0501 222 814	FORK 1ST/2ND		1
66	95536158	0769 150 206	SCREW M18X1,5		2
67	95570490	1290 306 066	SLIDING BLOCK		2

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
68		0730 300 991	ELASTIC RING 75X4		1
69	98530491	0735 321 529	NEEDLE BEARING 75X83X40 W		2
70	95536067	1346 304 187	GEAR 1ST SPEED 39 T.		1
71	95536208	0501 322 939	WASHER		1
72	95535794	0735 295 239	RING 66X40X75 MM		1
73	95535311	1346 304 167	REVERSE GEAR 35 T.		1
74	95530119	1308 304 087	SLIDING SLEEVE		1
75	95536157	0501 222 816	REVERSE FORK		1
76	95536159	1346 306 082	SCREW M18X1,5		2
77	95533339	1290 306 423	SLIDING BLOCK		2
78	95535312	1346 304 177	FOLLOWER RING 25 T.		1
79		0735 301 004	BEARING 55X120X29 MM		1
80	98531226	0635 300 110	NEEDLE BEARING 28X35X18		2
81	95535300	1346 305 063	REVERSE GEAR 19 T.		1
82		0630 502 014	RET. RING DIN 472 28X1,2		1
83	95535299	1346 305 039	REVERSE PIN		1
84		0730 301 066	ELASTIC RING		1
85	95536667	1346 201 066	REAR COVER		1
86	95531593	1238 308 201	GASKET		1
87	95531377	1304 301 034	COVER		1
87	95535605	1328 301 170	COVER	(1)	1	ALT
88		0636 016 406	SCREW M12X25		4
89	95532541	0734 319 687	OIL SEAL 80X100X10 MM		2
90		1346 343 005	OIL SEAL		1
91		1346 343 002	OUTPUT FLANGE		1
92		0636 100 541	SCREW M14X1,5X75		1
93		0730 004 731	SHIM 2,05 MM		1
93		0730 003 435	SHIM 1,95 MM		1
93	95536204	0730 002 935	SHIM 1,90 MM		1
93		0730 003 434	SHIM 1,85 MM		1
93	95536203	0730 002 936	SHIM 1,80 MM		1
93		0730 003 433	SHIM 1,75 MM		1
93	95536202	0730 002 937	SHIM 1,70 MM		1
93		0730 003 432	SHIM 1,65 MM		1
93	95536170	0730 002 938	SHIM 1,60 MM		1

Last update 04/2022

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
93		0730 003 431	SHIM 1,55 MM		1
93	95532086	0730 002 939	SHIM 1,50 MM		1
93		0730 003 430	SHIM 1,45 MM		1
93		0730 002 940	SHIM 1,40 MM		1
93		0730 003 429	SHIM 1,35 MM		1
93		0730 002 941	SHIM 1,30 MM		1
93		0730 004 706	SHIM 1,25 MM		1
93		0730 002 942	SHIM 1,20 MM		1
93		0730 004 705	SHIM 1,15 MM		1
93		0730 002 943	SHIM 1,10 MM		1
94	98530553	0735 371 994	BEARING 45X85X32 MM		1
95	60532315	0630 531 076	SEEGER RING T.3,00 MM	OLD	1
95		0730 300 194	SEEGER RING	NEW	1
96	95535296	1346 303 038	GEAR 5TH SPEED 40 T.		1
96		1346 303 075	GEAR 5TH SPEED		1
97	95535293	1346 303 039	GEAR 6TH SPEED 56 T.		1
98	95535292	1346 303 040	GEAR 4TH SPEED 37 T.		1
99	95535291	1346 303 046	GEAR 3RD SPEED 26 T.		1
100	95535347	1346 203 001	COUNTERSHAFT 11/18 T.	OLD	1
100	95536330	1346 303 077	COUNTERSHAFT 11/18 T.	NEW	1
101	95530099	1250 303 095	RING		1	NSS
102	98531880	0735 372 217	BEARING 45X85X24,75 MM		1
103	95536038	*****	COUNTERSHAFT ASSY		1

(1) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE: 95531377 - 1304 301 034 (FIG.87)
(3) WE SUPPLY THE ALTERNATIVE VERSION: 95536416 - 1317 304 171 (FIG.25)
