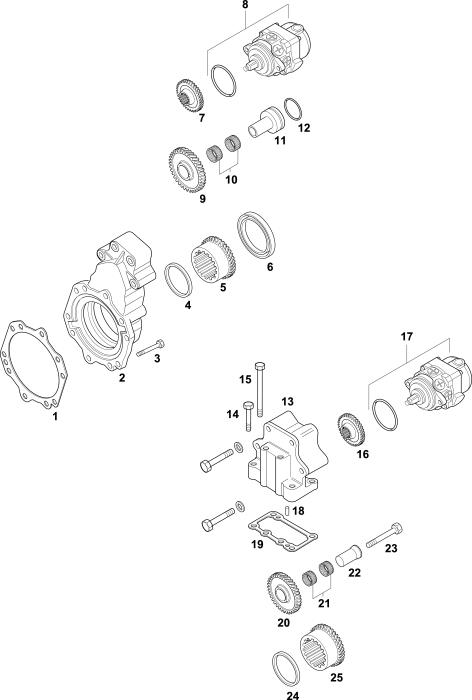

Fig.	Our No.	Part No.		Description	Notes	Q.ty	TP
1	95535188	0501 331 906		SHEET GASKET		1
2		0769 175 802		HOUSING		1
3		0636 100 433		SCREW M10X40		7
4		0730 300 198		WASHER T.5,20 MM		1
5	95536613	1315 315 004		GEAR 85 T.		1
6	95535684	0734 300 421		OIL SEAL 105X125X12/16 MM	OLD	1
6	95536270	0769 174 312		OIL SEAL 105X125X12/16 MM	NEW(1)	1	ALT
7	95536615	1304 313 068		GEAR 46 T.		1
8		8604 955 115		PLUNGER PUMP	OLD	1
8		0501 223 148		PLUNGER PUMP	NEW	1
9	95536612	1315 315 010		INTERMEDIATE GEAR 67 T.		1
10	98530741	0750 115 393		NEEDLE BEARING 20X26X13		2
11		6091 315 002		BUSH		1
12	95535550	0634 306 235		O-RING 32X3		1	NSS
13		1315 315 001		HOUSING		1
14		0636 016 404		SCREW M8X50		2
15		0636 011 763		SCREW M8X100		2
16	95536615	1304 313 068		GEAR 46 T.		1
17		8604 955 115		PLUNGER PUMP	OLD	1
17		0501 223 148		PLUNGER PUMP	NEW	1
18		0631 306 238		PIN		2
19		1315 315 012		GASKET		1
20	95536612	1315 315 010		INTERMEDIATE GEAR 67 T.		1
21	98530741	0750 115 393		NEEDLE BEARING 20X26X13		2
22		6091 215 018		SHAFT		1
23		0736 300 127		SCREW M10X80		1
24		0730 300 198		WASHER T.5,20 MM		1
25	95536613	1315 315 004		GEAR 85 T.		1

Note

(1) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE: 95535684 - 0734 300 421 (FIG.6)
